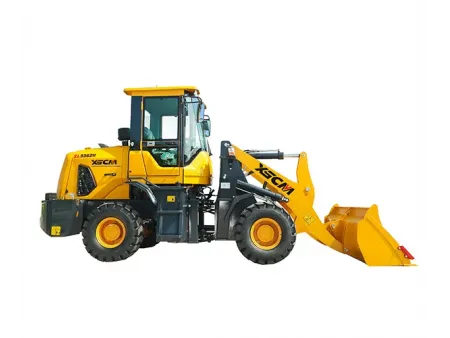

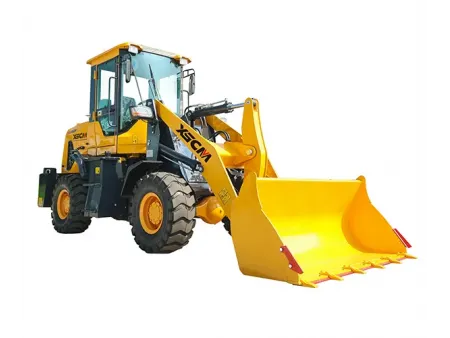

936Z Wheel Loader
Compact front end loader with diesel engine for landscaping, snow removal, and bulk handling tasks
- Rated load
1600kg - Rated bucket capacity
0.65m³ - Operating weight
3660kg - Dump height
3200mm
The 936Z wheel loader is equipped with a split-type dual converter, four-wheel drive, and full-hydraulic steering, providing strong power, high efficiency, and excellent adaptability to different environments. Its dual-pump converging hydraulic system reduces energy loss and enhances operational performance. The machine is suitable for a wide range of applications, including construction, agriculture, landscaping, and earthmoving or material transport tasks.
| Model | ZL936Z |
| Rated load | 1600kg |
| Rated bucket capacity | 0.65m³ |
| Operating weight | 3660kg |
| Dump height | 3200mm |
| Min. turning radius | 2750mm |
| Power | 36~83kW |
| Dimensions (L×W×H) | 5650×1940×2720mm |
Dual-opening rear hood with a large-angle tilting top cover for convenient inspection and maintenance
Ergonomic cab layout designed for operator comfort and intuitive control
Integrated powertrain and cooling system optimization, ensuring stable performance even under high temperatures and dusty working conditions
Heavy-duty wheel reduction drive axle with a forged axle housing, engineered for strength and durability
