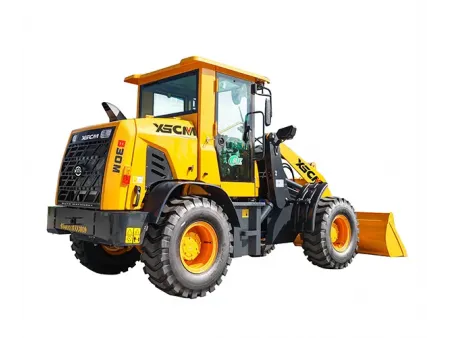

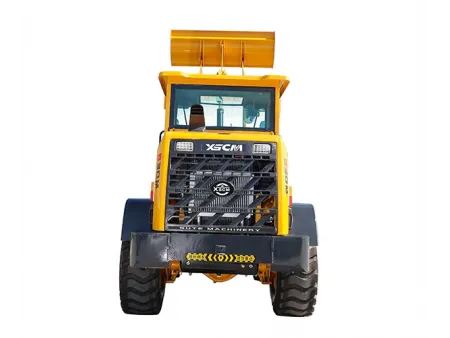

B30M Wheel Loader
Compact front end loader with diesel engine for landscaping, snow removal, and bulk handling tasks
- Rated load
1100kg - Rated bucket capacity
0.4m³ - Operating weight
2500kg - Dump height
3000mm
The B30M is an economical compact wheel loader ideal for small-scale landscaping, snow removal, and bulk material handling tasks. Equipped with a skid-steer type coupler, it offers high versatility and compatibility with various attachments, making it suitable for multiple job site applications.
| Model | B30 |
| Rated load | 1100kg |
| Rated bucket capacity | 0.4m³ |
| Operating weight | 2500kg |
| Dump height | 3000mm |
| Min. turning radius | 3180mm |
| Power | 36.8kW |
| Dimensions (L×W×H) | 4970×1655×2280mm |
Fully enclosed integrated cab structure for improved safety and operator comfort
Reinforced front arm with thickened plate-welded construction for enhanced durability
One-piece tiltable rear hood, allowing convenient maintenance and quick access to key components
Heavy-duty drive axle with an integrated forged housing, built for demanding engineering applications
20.5/70-16 high-strength industrial tires with widened tread for better traction, anti-slip performance, and wear resistance
