Solventless Laminator WRJ Fi9-1300A
Request a Quote
Two-layer lamination machine for use with solventless adhesives, less power consumption and lower operation cost
The solventless laminator provides the eco-friendly solution of solvent-free adhesive coating while ensuring precise coating weight consistency, thus serving as a popular choice for the manufacturers of flexible laminates that are suitable for product packaging. The lamination machine is commonly used to produce flexible packaging that consists of two substrates (generally 7µm -120µm in thickness) made of BOPP, PET, Nylon, CPP, PE, VMPET, VMCPP, PVC, etc.
Basic Information
- Layer Number of Laminated Film: 2 layers
- Max. Lamination Width: 1350mm
- Max. Unwind Diameter: 800 mm
- Max. Rewind Diameter: 800 mm
- Max. Power: 60 kW
- Temperature Control: 2
- Adhesive Mixer: 1 (WRJ4-2)
- Weight: 8800kg
- Dimensions (L×W×H): 6000×3000×2550mm
Substrate Types
- BOPP: 18-50µm
- VMPET: 12-30µm
- PE: 30-100µm
- PET: 12-30µm
- VMCPP: 20-60µm
- CPP: 30-100µm
- Nylon: 15-30µm
- Paper: 30-100gsm
Specifications
| Machine Model | WRJ Fi9-1300A Solventless Lamination Machine |

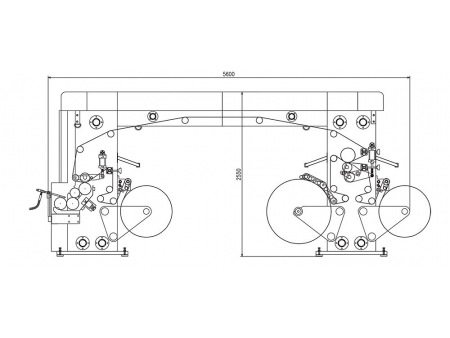

| Layout: | Left side (facing machine): coating unit, first unwind unit Right side (facing machine): rewind unit, lamination unit, second unwind unit |
| Max. Machine Speed | 450 m/min |
| Lamination Method | Two-component solventless lamination |
| Lamination Speed | 20-400 m/ min (depending on the properties of substrates and adhesives) |
| Lamination Width | 600mm～1350mm (shaftless chucking) |
| Max. Unwind Diameter | 800 mm |
| Max. Rewind Diameter | 800 mm |
| Max. Web Width | 1350mm |
| Max. Paper Core Length | 1350mm |
| Paper Roller Diameter | 3 inches: 76mm (ID) × 96mm (OD) |
| Guide Roller Length | 1450mm |
| Coating Weight (solventless adhesive) | 0.8～2.3g/ m² |

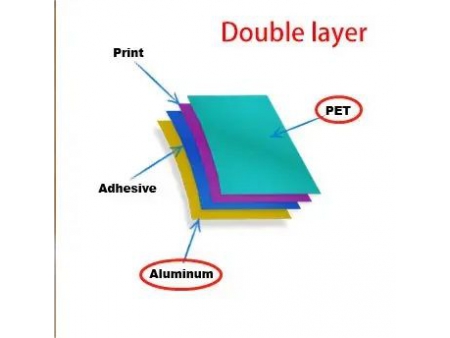

| Layer Number of Laminated Film | 2 layers |
| Temperature of Nip Pressure Roller | Room temperature -- 60℃ |
| Temperature of Steel Coating Roller | Room temperature -- 50℃ |
| Total Power | Approximately 70 kW |
| Power Supply | Three-phase five-wire, 380V±5%, 50Hz |
| Clean Air Pressure | 0.6Mpa |
| Machine Color | Ivory white |
| Machine Weight | Approximately 8800 kg |
| Dimensions (L×W×H) | 6000mm×2600mm×2550mm |
Features
- A combination of ergonomic design and green packaging technique
- Protection against incorrect mixing ratio
- Coating gap memory system
- Quick cleaning system
- Error-free precise tension control
- Accurate coating weight measurement system to ensure the coat weight consistency
- Automatic mixer and dispenser for solvent-free adhesives
- Effortless operation and reliable running
- Highly efficient performance with five roller coating system
- Rigid shaftless unwind/rewind units
- Closed-loop tension control via dancer roller
- Automated operation through PC control
FAQs
This laminating machine is most notable for its low power consumption and the use of solventless lamination technology makes it an even more eco-friendly choice for producing laminates.
The solvent-free laminator can work on films made of BOPP, PE, VMCPP, CPP, etc. If you have the need to laminate webs made of other materials, please contact us .
Yes, this laminator covers a wide variety of applications, not only in the label printing market but also in the flexible packaging industries.
Our clients include packaging films manufacturers for beverages and food as well as pharmaceutical packaging companies.
Our company has been in the business of producing solventless lamination machines for nearly twenty years.
Yes, we can customize our lamination machines based on your personal requirements for lamination applications.
