Mini Electric Scissor Lift with Hydraulic Steering Manufacturer

Mini Electric Scissor Lift with Hydraulic Steering

Request a Quote

Website: http://aerialwork-platform.com/1-1-4-mini-electric-scissor-lift.html

FSJY-YZ Aerial Work Platform

Mobile elevating work platform with 300kg capacity, up to 6800mm working height

Compact yet highly versatile, the mini electric scissor lift is engineered for a range of applications, including indoor ceiling installation, warehouse shelving access, fire safety equipment maintenance, and low-altitude cable laying. Built with seven key components: lifting platform, scissor lift arms, lift cylinders, hydraulic control system, base frame, driving system, and hydraulic system, it ensures reliable performance for diverse operational needs.

300kg
6800mm

Specifications

Model Number	Unit	FSJY3-YZ	FSJY3.9-YZ	FSJY4.8-YZ
Rated Lift Capacity	kg	300	300	300
Max. Working Height	mm	5000	5900	6800
Max. Platform Height	mm	3000	3900	4800
Overall Length (with Ladder/without Ladder)	mm	1340/1250	1340/1250	1340/1250
Overall Width	mm	760	760	760
Overall Height	mm	1880	1980	2040
Platform Size	mm	1170×600	1170×600	1170×600
Ground Clearance	mm	60	60	60
Wheel Base	mm	1010	1010	1010
Min. Turning Radius	mm	1400	1400	1400
Driving Motor	V/kW	2×24/0.4	2×24/0.4	2×24/0.4
Lifting Motor	V/kW	24/1.2	24/1.2	24/1.2
Drive Speed (Platform Stowed)	km/h	4	4	4
Drive Speed (Platform Elevated)	km/h	0.8	0.8	0.8
Lifting/Lowering Speed	sec	20/30	20/30	20/30
Battery	V/Ah	2×12/80	2×12/80	2×12/80
Charger	V/A	24/10	24/10	24/10
Max. Gradeability	%	10-15	10-15	10-15
Max. Safe Working Angle		2°	2°	2°
Driving Wheel	mm	Ø230×80	Ø230×80	Ø230×80
Front Wheel	mm	Ø230×80	Ø230×80	Ø230×80
Overall Net Weight	kg	650	700	930

Features

Allows users and technicians to quickly locate faults, enhancing work efficiency.
Components are organized within a single compartment for easy access, simplifying maintenance and repairs.
The charger is secured in a fixed compartment, enabling convenient charging whenever required.
Hydraulic drive system ensures smooth and stable lifting operations.

Main Options

Standard Features

Battery indicator
Diagnostic system
Battery charging protection
Hydraulic drive
Emergency stop button

Optional Features

Lithium battery
Platform extension
Folding guardrails

Detail Features

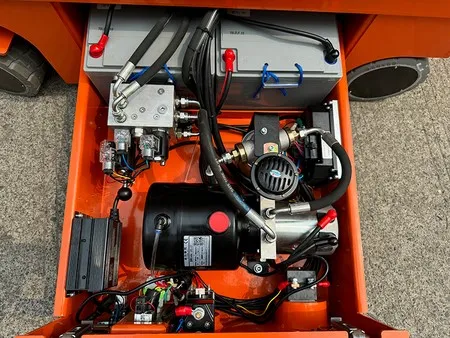

All components are housed in a single drawer, ensuring easy access and making maintenance and repairs convenient.

Detachable Handle Box

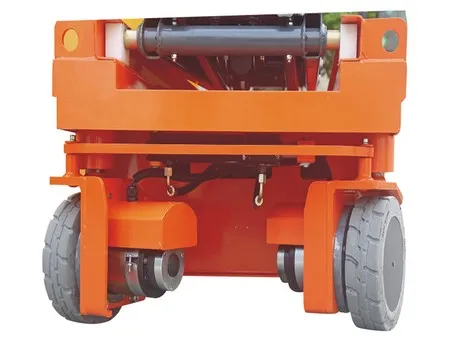

Non-marking tires
