Electric Slab Scissor Lift
Request a Quote
FSJY Aerial Work Platform
Mobile elevating work platform with 300kg capacity, up to 9100mm working height
For demanding indoor maintenance and outdoor high-altitude tasks, the electric slab scissor lift stands out with its spacious platform and exceptional load capacity. Its ability to safely support more poeple and tools makes it a reliable choice for enhancing efficiency and versatility across diverse applications.
- 300kg
- 9100mm

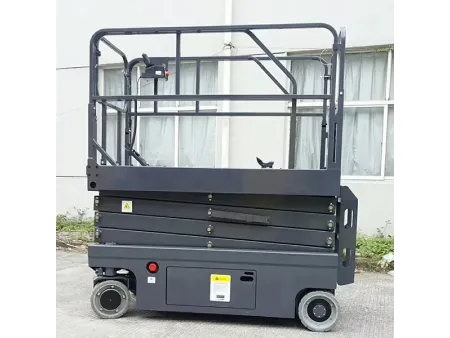

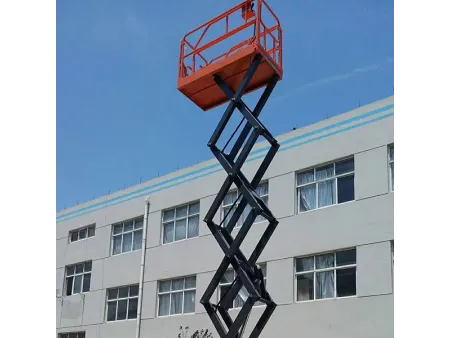

Photo Gallery
Specifications
| Model Number | Unit | | | |
| Max. Platform Height | mm | 6000 | 8000 | |
| Max. Working Height | mm | 7100 | 9100 | |
| Min. Platform Height | mm | 1080 | 1200 | |
| Ground Clearance | mm | 20 | 20 | |
| Rated Lift Capacity | kg | 300 | 300 | |
| Platform Extend Capacity | kg | 100 | 100 | |
| Platform Size | mm | 1880×900 | ||
| Platform Extend Length | mm | 900 | ||
| Max. Drive Speed (Platform Stowed) | km/h | 3-4 | ||
| Max. Drive Speed (Platform Elevated) | km/h | 0.6-1 | ||
| Min. Turning Radius | mm | 2000 | ||
| Max. Gradeability | % | 10-15 | ||
| Driving Wheel Size | mm | Ø305×100 | ||
| Steering Wheel Size | mm | Ø305×100 | ||
| Driving Motor | V/kW | 2×24/0.5 | ||
| Lifting Motor | V/kW | 24/2.2 | ||
| Battery | V/Ah | 2×12/150 | ||
| Charger | V/A | 24/25 | ||
| Pothole Protection System | Mechanical control | |||
| Overall Length | mm | 2050 | ||
| Overall Width | mm | 900 | ||
| Overall Height (Guardrail Folded) | mm | 1735 | 1860 | |
| Overall Net Weight | kg | 1500 | 1700 | |
Features
- Equipped with a buzzer and flashing warning lights to alert nearby personnel during operation
- The foot-pedal controlled platform extension can be quickly expanded to the work area, providing a larger operational range.
- Folding guardrails reduce the overall machine size, enabling it to pass through low-height spaces easily.
- Error code display simplifies maintenance by quickly identifying issues for easy troubleshooting.
- Includes an automatic pothole protection system and a tilt sensor, ensuring maximum safety during operation.

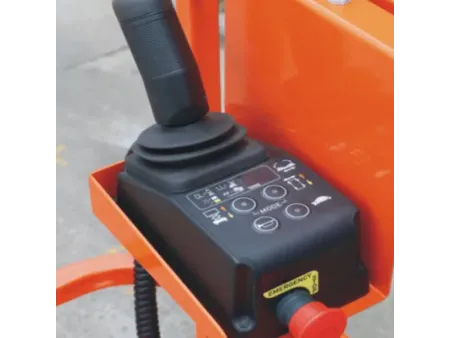

- Both ground and platform operators can activate emergency stop buttons to immediately halt platform movement in case of malfunction.
- Safety maintenance support bar protects maintenance personnel during inspections and repairs, ensuring secure and safe maintenance operations.
