Mini Push Around Scissor Lift
Request a Quote
SJY Aerial Work Platform
Mobile elevating work platform with 300kg capacity, up to 4800mm platform height
Compact and versatile, this mini push-around scissor lift delivers exceptional stability and adaptability, making it a reliable choice for high-altitude tasks. Developed by incorporating the advantages of similar products from domestic and international markets, this lift is ideal for indoor operations requiring high mobility and flexibility. Its compact size allows for greater usability in a wide range of settings. The lift is constructed with five main components: the work platform, scissor arms, lift cylinders, hydraulic control system, and base frame.
- 300kg
- 4800mm
Specifications
| Model Number | Unit | |||
| Rated Lift Capacity | kg | 300 | 300 | 300 |
| Max. Platform Height | mm | 3000 | 3900 | 4800 |
| Min. Platform Height | mm | 630 | 700 | 830 |
| Platform Size | mm | 1170×600 | 1170×600 | 1170×600 |
| Lifting Time | sec | 33 | 33 | 33 |
| Lowering Time | sec | 30 | 30 | 30 |
| Lifting Motor | V/kW | 12/0.8 | 12/0.8 | 12/0.8 |
| Charger | V/A | 12/10 | 12/10 | 12/10 |
| Overall Length | mm | 1300 | 1300 | 1300 |
| Overall Width | mm | 740 | 740 | 740 |
| Overall Height | mm | 1700 | 1800 | 1930 |
| Overall Net Weight | kg | 360 | 420 | 475 |
| Battery | V/A | 12/60 | 12/60 | 12/60 |
Features
- The pump unit, charger, battery, and lower control panel are housed in a single compartment for easy access, making battery replacement and component maintenance convenient.
- The charger plug features a detachable design, allowing for easy replacement with various standards such as GB, UK, and Australian plugs.
- The steel structure offers a higher safety and stability factor compared to similar products, ensuring longer equipment lifespan.

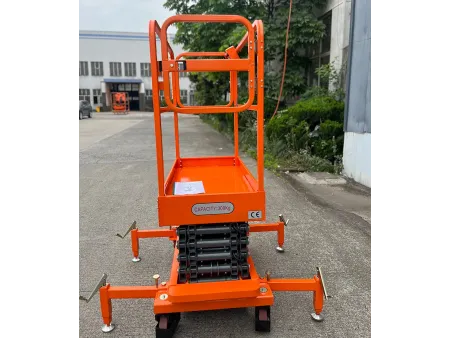

- Some models include side outriggers, which can be deployed for enhanced safety and stability during operation.
Applications
The mini push Around scissor lift is versatile and widely used for:
- Glass curtain wall installation and cleaning
- Indoor ceiling installation and maintenance
- Indoor lighting fixture installation and repair
- Gardening and orchard picking tasks
Detail Features

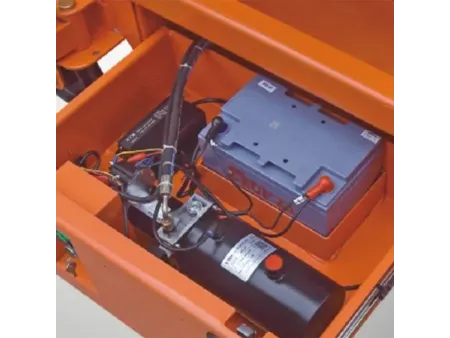

All components in one compartment

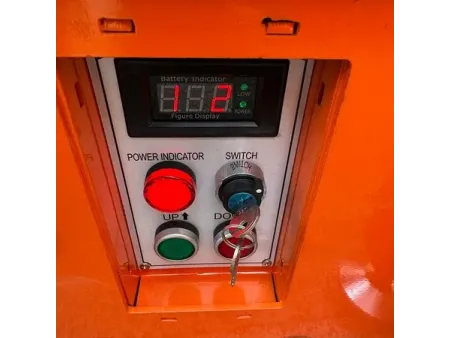

Lower control panel

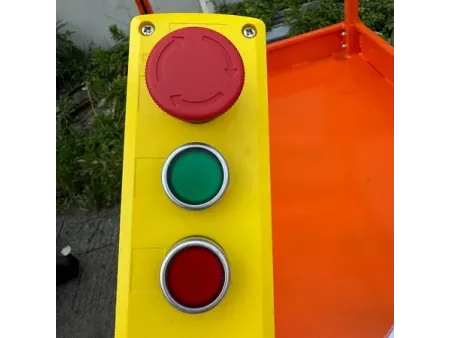

Upper control box
