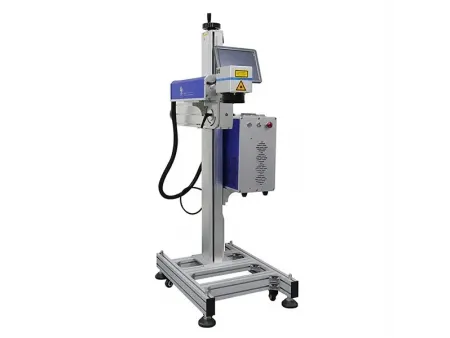

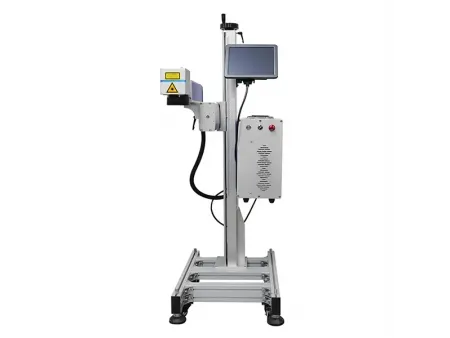

Online Flying Fiber Laser Marking Machine
- Laser wavelength 1064nm
- Marking range 110×110mm
- Beam quality M²<1.5
- Max. line speed 12000mm/s
Designed specifically for high-speed production lines, the online flying fiber laser marking machine integrates an industrial-grade fiber laser and a high-speed galvo scanner system. It supports synchronous marking on production lines moving at 0-30m/min, allowing for permanent product identification without stopping the line. With scanning speeds up to 12,000mm/s, it boosts daily production capacity by 200%. It seamlessly integrates with PLC systems, enabling fully automatic serial number, QR code, and batch number generation and traceability. Requiring zero consumables and causing no ink pollution, it complies with FDA/CE certifications, meeting safety standards for food packaging and medical-grade applications.
- Metals: Iron, steel, carbon steel, stainless steel, pure aluminum, aluminum alloy, zinc alloy, titanium alloy, brass, bronze, gold, silver, platinum
- Plastics: ABS, PVC, PE, HDPE
| Laser power | 30W, 50W, 100W |
| Laser type | fiber laser |
| Laser wavelength | 1064nm |
| Marking range | 110×110mm |
| Beam quality | M²<1.5 |
| Max. line speed | 12000mm/s |
| Min. character size | 0.05mm |
| Min. line width | 0.01mm |
| Cooling method | air cooling |
| Power supply | 220V/50Hz or 110V/60Hz |
| Operating temperature | 5℃~40℃ (operation outside this range may affect performance and lifespan) |
| Machine dimensions | 480×660×1450mm |
| Package size | 1330×580×560mm |
| Machine weight | 66kg |
| Package weight | 76kg |
Laser source
We provide Raycus, JPT, MAX, SUPER, and IPG laser sources for our laser equipment, featuring high pump conversion efficiency, low power consumption, and excellent beam quality.
Galvo scanner
A 12000mm/s high-speed scanning head, primarily used for laser marking. It is equipped with a dual-red-light focusing device, which significantly enhances focusing efficiency.
F-theta lens
Equipped with an F-theta lens for 1064nm wavelength, mainly used in fiber laser marking machines. Due to its longer wavelength, it offers strong energy penetration, making it suitable for marking various metal and non-metal materials. It supports long-term operation without the need for consumables to be added or replaced. Currently, we have received no user feedback regarding F-theta lens damage.
- Fiber laser
- High-speed galvo scanner
- 1200mm z-axis 500mm y-axis (gantry/column for integration)
- Laser control cabinet
- F-theta lens
- Control card
- Touchscreen display
- Encoder
- Sensor
- Laser power supply
- Power cord
- Safety goggles
- Foot pedal switch
- Aluminum test piece
- Hex key tool set
- Equipment warranty certificate
- Shipping accessories list
- Product catalog
