Polarimeter / Polarization Analyzer
Request a Quote

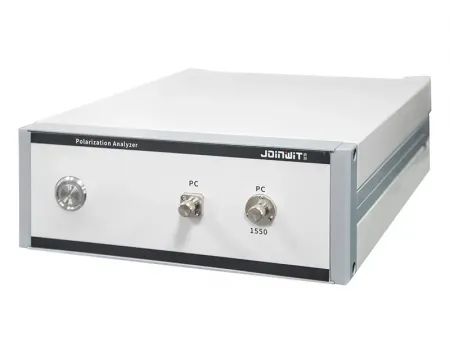

JW8610
DOP meter for measuring the degree of polarization (DOP) of a light source
This polarization analysis instrument is designed for measuring the polarization state of collimated free-space light and fiber optic light sources. Utilizing a rotating wave plate method, it achieves a maximum sampling rate of 20 Hz. The polarimeter includes software capable of real-time polarization state display on a Poincaré sphere interface. When paired with the polarization state thermal cycling heater, it can measure the polarization extinction ratio (PER) of narrowband light through fiber heating techniques.
Typical Applications
- Polarization state analysis and monitoring
- Polarization degree (DOP) measurement
- Extinction ratio (PER) measurement (with JW8612 thermal cycling heater)
- Rotation angle measurement
Specifications
| Wavelength Range | 1270-1650nm |
| SOP Accuracy | 0.25° |
| DOP Accuracy | 1% |
| PER Measurement Range | 0-40dB |
| PER Resolution | 0.1dB |
| Input Power Range | -40 to 10dBm |
| Sampling Rate | 100Hz |
| Optical Connector Type | FC or free-space collimated beam |
| Beam Diameter | 3mm |
| Maximum Deflection Angle of Collimated Beam | 2° |
| Dimensions | 235×104×300 mm |
