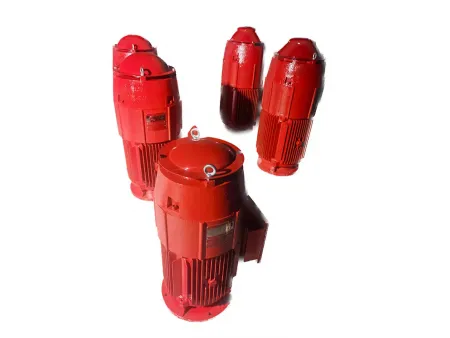

Premium Efficiency VHS Motor

Premium Efficiency VHS Motor
Request a Quote
Website:
Vertical hollow shaft motor able to achieve 96.2-98.6% efficiency in energy consumption

Our premium efficiency VHS motors feature optimum design, materials, and processes, such as optimized stator and rotor slot numbers, fan parameters, and sinusoidal windings to reduce losses, improving efficiency by 2–10%, with an average increase of 6%. Our motors achieve an average efficiency of 96.2-98.6% and are suitable for water pump driving, large turbine pump driving, power stations, steel mills, and agricultural irrigation.

  • Energy efficiency: 96.2-98.6%
  • Service factor: 1.15
  • Altitude: 1000-2000m
  • Protection degree: IP23/IP55, WP1, TEFC
  • NEMA/ IEC design, special balancing
  • Equipped with steel ball type anti-reverse mechanism
  • Material: Cast steel
  • Mounting type: Vertical P-Base
  • Shaft position: Vertical
  • PWS, special balancing
  • Startup mode: Star delta starter/VFD/soft starter
  • Wide voltage range: 300-460V
  • Insulated thrust bearings (Optional): TMB (standard), NSK, SKF, and FAG
  • Warranty: 1-2 years
  • Ambient temperature: 50-60℃
  • Altitude: 1000-2000m
Applications
Agricultural applications
  • Farmland irrigation: Draws groundwater or surface water to meet crop irrigation needs, widely used in drought-prone or seasonally water-scarce regions.
  • Aquaculture water supply: Provides a steady water source for fish ponds and breeding pools, supporting water circulation and supply demands in aquaculture.
Industrial applications
  • Industrial water supply: Extracts groundwater or circulates water in industries like petroleum, chemical, and pharmaceutical, meeting cooling and raw material transport needs.
  • Mine drainage: Addresses water accumulation in mines and tunnels, ensuring safe working conditions.
  • Thermal power station water circulation: Delivers high-temperature cooling or circulating water, supporting stable operation of industrial thermal systems.
Municipal and residential applications
  • Urban water supply: Serves as water intake equipment for treatment plants, extracting deep groundwater to supplement city pipelines.
  • Residential and hotel heating: Pairs with geothermal systems to draw hot groundwater for district heating or hot spring supply.
  • Wastewater treatment: Facilitates municipal sewage discharge or recycling, enhancing water resource efficiency.
Specifications
Model Rated Power (HP) Frame Speed (RPM) Rated Voltage (V) Efficiency (%) Axial Thrust Load (Ibs) Frame Diameter (in) Weight (Ibs)
VHS213TP-2-0075P2 7.5 213TP 3600 230/460 90.7 2000 10 302
VHS215TP-4-0075P2 7.5 215TP 1800 230/460 93.3 2500 10 302
VHS213TP-2-010P2 10 213TP 3600 230/460 91.7 2000 10 340
VHS215TP-4-010P2 10 215TP 1800 230/460 94.0 2500 10 340
VHS215TP-2-015P2 15 215TP 3600 230/460 92.5 2000 10 448
VHS254TP-4-015P2 15 254TP 1800 230/460 95.3 3200 10 583
VHS254TP-2-020P2 20 254TP 3600 230/460 93.3 2500 10 596
VHS256TP-4-020P2 20 256TP 1800 230/460 95.3 3200 10 621
VHS256TP-2-025P2 25 256TP 3600 230/460 94.0 2500 10 646
VHS284TP-4-025P2 25 284TP 1800 230/460 95.9 3200 10 658
VHS284TP-2-030P2 30 284TP 3600 230/460 94.0 2500 10 674
VHS286TP-4-030P2 30 286TP 1800 230/460 96.5 3200 10 698
VHS286TP-2-040P2 40 286TP 3600 230/460 94.7 2500 10 728
VHS324TP-4-040P2 40 324TP 1800 230/460 96.5 5500 16.5 937
VHS324TP-4-040P2 40 324TP 1800 460 96.5 5500 16.5 937
VHS324TP-2-050P2 50 324TP 3600 230/460 95.3 4290 16.5 956
VHS324TP-2-050P2 50 324TP 3600 460 95.3 4290 16.5 956
VHS326TP-4-050P2 50 326TP 1800 230/460 96.9 5500 16.5 989
VHS326TP-4-050P2 50 326TP 1800 460 96.9 5500 16.5 989
VHS326TP-2-060P2 60 326TP 3600 230/460 95.9 4290 16.5 1030
VHS326TP-2-060P2 60 326TP 3600 460 95.9 4290 16.5 1030
VHS364TP-4-060P2 60 364TP 1800 230/460 97.4 5600 16.5 1140
VHS364TP-4-060P2 60 364TP 1800 460 97.4 5600 16.5 1140
VHS364TP-2-075P2 75 364TP 3600 230/460 95.9 4400 16.5 1162
VHS364TP-2-075P2 75 364TP 3600 460 95.9 4400 16.5 1162
VHS365TP-4-075P2 75 365TP 1800 230/460 97.4 5600 16.5 1192
VHS365TP-4-075P2 75 365TP 1800 460 97.4 5600 16.5 1192
VHS365TP-2-100P2 100 365TP 3600 230/460 95.9 4400 16.5 1226
VHS365TP-2-100P2 100 365TP 3600 460 95.9 4400 16.5 1226
VHS404TP-4-100P2 100 404TP 1800 230/460 97.8 6700 16.5 1638
VHS404TP-4-100P2 100 404TP 1800 460 97.8 6700 16.5 1638
VHS404TP-2-125P2 125 404TP 3600 230/460 96.5 5265 16.5 1646
VHS404TP-2-125P2 125 404TP 3600 460 96.5 5265 16.5 1646
VHS405TP-4-125P2 125 405TP 1800 230/460 97.8 6700 16.5 1700
VHS405TP-4-125P2 125 405TP 1800 460 97.8 6700 16.5 1700
VHS405TP-2-150P2 150 405TP 3600 230/460 96.5 6285 16.5 1755
VHS405TP-2-150P2 150 405TP 3600 460 96.5 6285 16.5 1755
VHS444TP-4-150P2 150 444TP 1800 230/460 98.2 8000 16.5 2256
VHS444TP-4-150P2 150 444TP 1800 460 98.2 8000 16.5 2256
VHS445TP-4-200P2 200 445TP 1800 230/460 98.2 8000 16.5 2438
VHS445TP-4-200P2 200 445TP 1800 460 98.2 8000 16.5 2438
VHS445TP-4-250P2 250 445TP 1800 230/460 98.2 8000 16.5 2588
VHS445TP-4-250P2 250 445TP 1800 460 98.2 8000 16.5 2588
VHS447TP-4-300P2 300 447TP 1800 460 98.2 8000 20 2990
VHS5006P-4-300P2 300 5006P 1800 460 98.2 8750 20 3946
VHS5006P-4-350P2 350 5006P 1800 460 98.2 8750 20 4057
VHS5008P-4-400P2 400 5008P 1800 460 98.2 8750 24.5 5302
VHS5008P-4-450P2 450 5008P 1800 460 98.6 8750 24.5 5483
VHS5008P-4-500P2 500 5008P 1800 460 98.6 8750 24.5 5655
VHS5807P-4-600P2 600 5807P 1800 460 98.6 9680 30.5 6872
FAQ

We are a manufacturing factory accepting OEM orders, and we invite you to visit our facility to explore our products firsthand.

Samples typically take 45 days, while mass production requires 45–60 days, depending on your specific requirements.

We provide air freight, sea freight, and express delivery, selecting the most suitable method based on your needs.
