Quadplex Solventless Lamination Line, A400-13-4V
Request a Quote
Solventless Lamination Machine
- Max laminating speed: 400m/min
- Max web width: 1300mm
- Max unwinding diameter: 1000mm
- Max rewinding diameter: 1000mm
- Inner diameter of core: 3'' or 6''
- Reel fixing: shafted or shaftless
- Laminate structure: duplex, triplex, quadplex

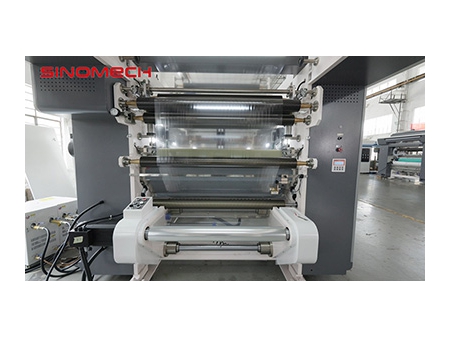

- Modular quadplex laminating unit

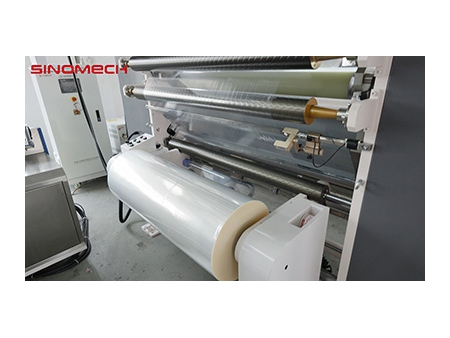

- Unwinding unit

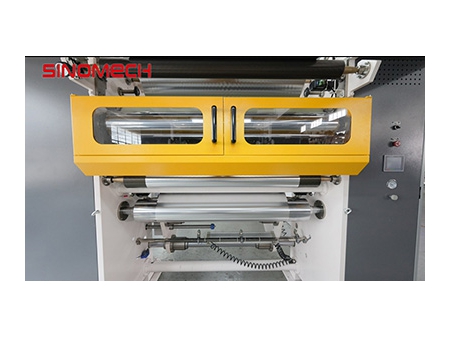

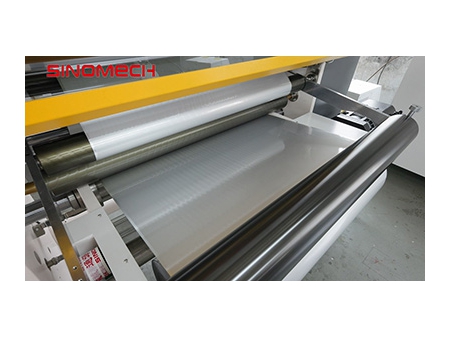

- Laminating unit
- Unwinding unit

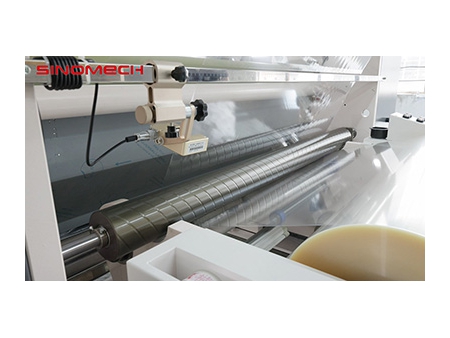

- Sidelay-registration for substrates & coating layers
Features
- Supports a wide range of flexible materials, including plastic films, metallized films, aluminum foil, and light paper
- It can carry out two-layer, three-layer, or even four-layer solventless lamination in a single pass
- Ideal for complex lamination jobs that require high efficiency and material versatility
- A sidelay registration system ensures precise lateral alignment of both substrates and adhesive coating, eliminating the need for standard web guide rollers.
- Tension is independently controlled across each section and layer, providing better stability during long web paths and complex multi-layer laminations.
- Coating weight is digitally managed using individual servo-driven metering rollers, ensuring accurate and consistent adhesive application.
- The laminating system operates through a digitally integrated workflow based on modular layout and process topology.
- An inline air removal system improves adhesion performance in multi-layer lamination by eliminating trapped air between layers.
- The upgraded metering and mixing unit includes internal preheating tanks to maintain adhesive stability and reduce temperature fluctuations.
