17kW-1600kW Diesel Generator Sets Manufacturer

17kW-1600kW Diesel Generator Sets

Request a Quote

View All: http://db-dieselgenerators.com/1-1-cummins-engine-series.html

Powered by Cummins diesel engines

Play Video

Our Cummins series diesel generator sets are powered by Cummins diesel engines, offering a power range from 25kVA to 2000kVA. These generator sets deliver consistent and reliable power output with minimal noise. They are cost-effective to operate and maintain, featuring extended maintenance intervals for enhanced efficiency.

Key Specs

Power Range: 17-1600kW (25-2000kVA)

Fuel Type: Diesel

Frequency: 50 & 60HZ

Build Type: Silent Generator & Open Generator

Standards

The Cummins series diesel generator sets are line with multiple standards, such as the ISO9001, ISO14001, ISO45001, GB/T2820, ISO8525 & CE.

We offer a variety of Cummins series diesel generator sets with different power capacities.

Our Cummins engine series diesel generator sets are categorized into two series:
Chongqing and Dongfeng, operating at frequencies of 50Hz/1500rpm or 60Hz/1800rpm.

50Hz Selection Table

Genset Model	Diesel Generator Set				Engine Model	Size
	Prime Power		Standby Power			Dimension ( L x W x H: mm )	Weight (kg)
	kW	kVA	kW	kVA		Dimension ( L x W x H: mm )	Weight (kg)
Powered by DCEC Cummins engine, 50Hz/1500rpm
DB-17GF	17	20	19	24	4B3.9-G11	1650×800×1300	760
DB-22GF	22	27	24	30	4B3.9-G1	1650×800×1300	760
DB-25GF	25	31	28	35	4B3.9-G12	1650×800×1300	780
DB-32GF	32	40	35	44	4BT3.9-G1	1650×800×1300	800
DB-45GF	45	56	50	62	4BTA3.9-G2	1850×850×1300	820
DB-50GF	52	65	56	70	4BTA3.9-G2	1850×850×1300	820
DB-64GF	64	80	72	90	4BTA3.9-G11	1850×850×1300	900
DB-80GF	80	100	88	110	6BT5.9-G1	2200×850×1600	1060
DB-84GF	84	105	92	115	6BT5.9-G2	2200×850×1600	1060
DB-92GF	92	115	100	125	6BTA5.9-G2	2300×850×1600	1080
DB-110GF	110	138	120	150	6BTAA5.9-G2	2450×850×1600	1150
DB-120GF	120	150	132	165	6BTAA5.9-G12	2450×850×1600	1150
DB-150GF	150	188	165	206	6CTA8.3-G1	2450×850×1800	1450
DB-150GF	150	188	165	206	6CTA8.3-G2	2450×850×1800	1450
DB-160GF	160	200	176	220	6CTAA8.3-G2	2600×950×1800	1860
DB-200GF	200	250	220	275	6LTAA8.9-G2	2800×1000×1800	2000
DB-220GF	220	275	242	303	6LTAA9.5-G3	2800×1000×1800	2300
DB-250GF	250	313	275	344	6LTAA9.5-G1	2800×1000×1800	2500
DB-310GF	310	388	340	425	6ZTAA13-G3	3200×1200×1950	3000
DB-350GF	350	438	385	481	6ZTAA13-G2	3250×1360×2100	2700
DB-360GF	360	450	396	495	QSZ13-G5	3250×1360×2100	3200
DB-400GF	400	500	440	550	QSZ13-G3	3250×1360×2100	3200
Powered by CCEC Cummins engine, 50Hz/1500rpm
DB-200GF	200	250	220	275	NT855-GA	2900×1000×1800	2300
DB-240GF	250	313	275	344	NTA855-G1A	3000×1040×1655	2600
DB-260GF	260	325	290	363	NTA855-G1B	3000×1060×1800	2550
DB-280GF	280	350	310	388	NTA855-G2A	3000×1060×1900	2600
DB-300GF	300	375	330	413	NTAA855-G7	3200×1200×1900	2850
DB-300GF	300	375	330	413	KTA19-G2	3200×1200×1900	2850
DB-320GF	320	400	350	438	QSNT-G3	3200×1200×1900	3000
DB-360GF	/	/	360	450	NTAA855-G7A	3200×1200×2000	3250
DB-360GF	360	450	400	500	KTA19-G3	3600×1550×2200	3400
DB-400GF	400	500	440	550	KTA19-G3A	3450×1400×2000	3550
DB-400GF	400	500	440	550	KTA19-G4	3450×1400×2000	3750
DB-430GF	430	538	470	588	KTAA19-G5	3450×1500×2200	3900
DB-480GF	480	600	528	660	KTAA19-G6	3450×1500×2200	4300
DB-520GF	/	/	520	650	KTA19-G8	3450×1500×2200	4400
DB-550GF	550	688	600	750	KTA19-G9A	3500×1600×2200	4580
DB-600GF	580	725	640	800	KTA38-GA	4500×2000×2300	6100
DB-600GF	600	750	660	825	KTA38-G2	4500×2000×2300	6350
DB-650GF	650	813	720	900	KTA38-G2B	4300×2060×2430	6900
DB-740GF	728	910	800	1000	KTA38-G2A	4500×2000×2300	6800
DB-800GF	800	1000	880	1100	KTA38-G5	4500×2000×2300	6900
DB-900GF	900	1125	1000	1250	KTA38-G9	4500×2000×2300	8600
DB-1000GF	1000	1250	1100	1375	KTA50-G3	5200×2250×2500	10000
DB-1100GF	1100	1375	1320	1650	KTA50-G8	5200×2250×2500	10000
DB-1200GF	1200	1500	1320	1650	KTA50-GS8	5200×2250×2500	11000
DB-1340GF	1340	1675	1500	1875	KTA50-G15X	5200×2250×2500	12000
DB-1500GF	1500	1875	1600	2000	KTA50-G16A	5200×2250×2500	12000

60Hz Selection Table

Genset Model	Diesel Generator Set				DCEC Cummins Engine Model	Size
	Prime Power		Standby Power			Dimension ( L x W x H: mm )	Weight ( kg )
	kW	kVA	kW	kVA		Dimension ( L x W x H: mm )	Weight ( kg )
Powered by DCEC Cummins engine, 60Hz, 1800rpm
DB-20GF	20	25	22	28	4B3.9-G11	1650×800×1300	760
DB-24GF	24	30	27	34	4B3.9-G2	1650×800×1300	760
DB-28GF	28	35	30	38	4B3.9-G12	1650×800×1300	760
DB-36GF	36	45	40	50	4BT3.9-G2	1850×850×1300	820
DB-51GF	51	64	56	70	4BTA3.9-G2	1850×850×1300	820
DB-60GF	60	75	60	75	4BTA3.9-G2	1850×850×1300	820
DB-72GF	72	90	75	94	4BTA3.9-G11	1850×850×1300	900
DB-91GF	91	114	100	125	6BT5.9-G2	2200×850×1600	1060
DB-100GF	100	125	110	138	6BT5.9-G2	2200×850×1600	1060
DB-109GF	110	137.5	120	150	6BTA5.9-G2	2300×850×1600	1080
DB-114GF	120	150	132	165	6BTAA5.9-G2	2450×850×1600	1150
DB-136GF	136	170	150	188	6BTAA5.9-G12	2450×850×1600	1150
DB-159GF	159	199	175	219	6CTA8.3-G2	2450×850×1800	1450
DB-173GF	173	216	190	238	6CTAA8.3-G2	2600×950×1800	1860
DB-208GF	208	260	228	286	6LTAA8.9-G2	2800×1000×1800	2000
DB-227GF	227	284	250	313	6LTAA8.9-G3	2800×1000×1800	2300
DB-240GF	240	300	264	330	6LTAA9.5-G3	2800×1000×1800	2300
DB-250GF	256	320	280	350	6LTAA9.5-G1	2800×1000×1800	2500
DB-318GF	318	398	350	438	6ZTAA13-G3	3250×1360×2100	2700
DB-355GF	355	443	390	488	6ZTAA13-G2	3250×1360×2100	2700
DB-364GF	364	455	400	500	QSZ13-G2	3250×1360×2100	3200
DB-360GF	360	450	396	495	6ZTAA13-G4	3250×1360×2100	3200
DB-382GF	382	477	420	525	QSZ13-G5	3250×1360×2100	3200
DB-400GF	400	500	440	550	QSZ13-G3	3250×1360×2100	3200
DB-440GF	440	550	480	600	QSZ13-G11	3250×1360×2100	3200
Powered by CCEC Cummins engine, 60Hz, 1800rpm
DB-220GF	-	-	220	275	NT855-GA	2900×1000×1800	2300
DB-320GF	320	400	350	438	QSNT-G3	3200×1200×1900	2400
DB-250GF	250	313	275	344	NTA855-G1	3000×1060×1800	2550
DB-275GF	275	344	300	375	NTA855-G1B	3000×1060×1900	2600
DB-275GF	275	344	300	375	NTA855-G2	3000×1060×1900	2600
DB-315GF	315	394	350	438	NTA855-G3	3200×1200×1900	2850
DB-350GF	350	438	400	500	KTA19-G2	3450×1400×2000	3550
DB-410GF	410	513	450	563	KTA19-G3	3450×1400×2000	3550
DB-450GF	450	563	500	625	KTA19-G3A	3450×1400×2000	3550
DB-450GF	450	563	500	625	KTA19-G4	3450×1400×2000	3750
DB-470GF	470	588	550	688	KTAA19-G5	3450×1500×2200	3900
DB-500GF	500	625	570	713	QSK19-G4	3500×1600×2200	4580
DB-550GF	550	688	600	750	QSK19-G5	3500×1600×2200	4580
DB-620GF	620	775	680	850	KT38-G	4200×1820×2200	4700
DB-700GF	700	875	770	963	KTA38-G1	4500×2000×2300	6100
DB-600GF	725	906	800	1000	KTA38-G2	4500×2000×2300	6350
DB-800GF	800	1000	880	1100	KTA38-G2A	4500×2000×2300	6800
DB-750GF	750	938	830	1038	KTA38-G2B	4500×2000×2300	6800
DB-900GF	900	1125	1000	1250	KTA38-G4	4500×2000×2300	6900
DB-1100GF	-	-	1100	1375	KTA38-G9	4500×2000×2300	8600
DB-1100GF	1100	1375	1260	1575	KTA50-G3	5200×2250×2500	11300
DB-1130GF	1130	1413	1180	1475	KTA50-G12	5200×2250×2500	11300
DB-1220GF	1220	1525	1430	1788	KTA50-G12A	5200×2250×2500	11300
DB-1260GF	1260	1575	1500	1875	KTA50-G9	5200×2250×2500	11300

For more details, please contact us!

Details

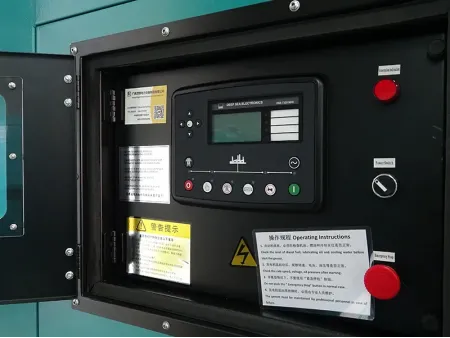

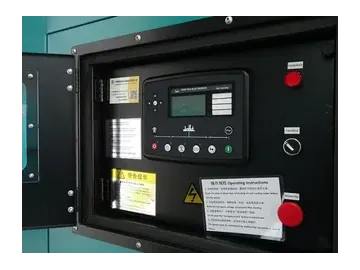

Intelligent Protection and Control System
Our generator sets are equipped with the renowned SmartGen/Deep Sea control system, providing comprehensive protection against short-circuit, under-voltage, phase sequence, and overload. Our generator sets feature a multifunctional LCD display that enables full manual control, parallel operation, and auto/stop/manual options. They also include start and stop delays for enhanced operational flexibility. An emergency stop button is provided for increased safety.

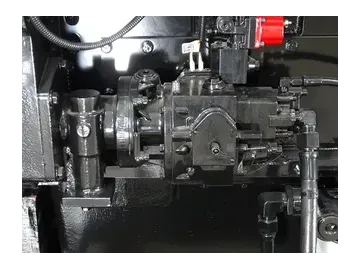

Fuel System
Includes a unique overspeed protection, low-pressure oil pipelines for reduced failure rates and high reliability, high-pressure injection for complete combustion, and equipped with a one-way check valve for fuel supply and return, ensuring safety and reliability.

Air Intake System
Comes with a dry air filter and air resistance indicator. Utilizes a HOLSET turbocharger to ensure adequate air intake and optimal performance.

Exhaust System
Employs pulse exhaust pipes to efficiently utilize exhaust gas energy, enhancing engine performance. Includes an exhaust elbow and bellows for easy installation.

Lubrication System
Features a 60GAL variable flow oil pump with a main oil channel signal pipe, which adjusts the pump oil volume based on the oil pressure to optimize engine lubrication.

Chassis
High-strength, bending-resistant chassis made from thick steel plate for excellent shock absorption, corrosion-resistant spray paint.

Shock Absorbers
The body and base are equipped with high-strength chrome-plated shock absorbers, providing effective shock absorption, noise reduction, strong load-bearing capabilities, and durability.

Features

A robust construction ensures smooth operation and high efficiency.
The generator sets are characterized by low vibration and noise levels, longevity, and ease of maintenance.
Compact and lightweight, they offer low fuel consumption, high power output, and reliable performance.
Equipped with forced water cooling systems, they have low heat radiation and excellent overall performance.
The Cummins series diesel generator sets are known for their superior durability, reliability, power, and fuel efficiency.
Designed to operate in extreme conditions, they can withstand ambient temperatures up to 50 degrees Celsius and adapt to challenging environments like high altitudes and extreme temperatures.
We provide a complete supply of spare parts, ensuring easy maintenance and repair.

Configurations

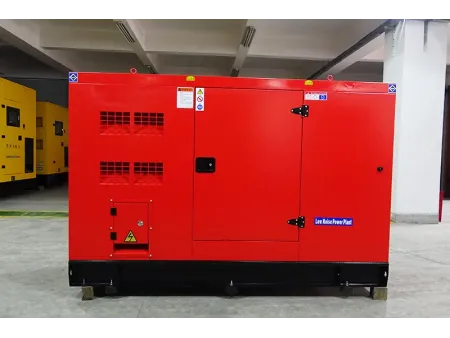

Silent Generator
Trailer Mobile Generator
Containerized Generator
Automatic Transfer Switch
Automatic parallel operation controller
Rainproof Generator

Cases

800kW Cummins engine series diesel generator sets exported to Zimbabwe
350kW Cummins engine series diesel generator sets exported to Lybia
