Curved Tempered Glass

Request a Quote

View All: http://temperedglass-en.com/1-1-curved-tempered-glass-lengthwise-bending.html

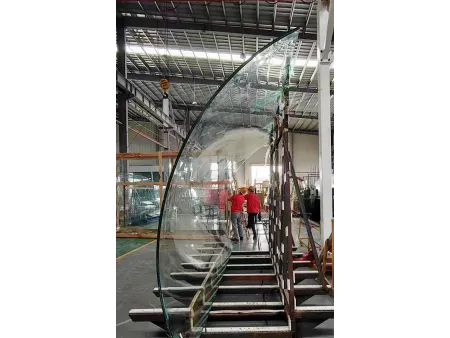

Oversized curved glass with arc length of up to 7000mm

Curved tempered glass refers to glass with an arc length exceeding standard dimensions (e.g., over 3000mm) that undergoes hot bending and tempering processes. This type of glass features large, continuous curved shapes with high strength. The curved tempered glass can be customized into various curvatures and sizes, ranging from smaller dimensions of 600mm x 400mm to larger sizes of 7000mm x 3300mm, with a thickness range of 5-19mm.

Our processing advantages:

We are the leader in South China for the longest curved tempered glass, with a maximum arc length of 7 meters x 3.3 meters.

Maximum Arc Length: Up to 7000mm in length and 3300mm in height, with a radius of 3000mm
Smallest Radius: 600mm radius, with an arc length of 1600mm x 3300mm
Maximum Reverse Bending: 3200mm x 7000mm
We are equipped with the most advanced double-curve bending furnace, allowing for multi-point curvature adjustments.

Features

High Strength and Safety: The surface strength of the glass can be up to four times stronger than regular glass, significantly enhancing its bending strength. Even under external pressure, the glass shatters into blunt-edged, honeycomb-like particles that reduce the risk of injury from sharp edges.
Excellent Thermal Stability: This glass can withstand large temperature fluctuations, withstanding temperature changes of over 250°C, effectively preventing breakage in rapid cooling or heating environments. It is ideal for use in high-rise building facades and other environments subject to temperature variation.
Stable Optical Performance: The tempering process does not alter the glass’s optical properties, preserving its clarity and light transmittance.
Wide Range of Applications: Curved tempered glass is widely used in stadiums, exhibition halls, automobile showrooms, and other locations, meeting various complex environmental and design requirements.

Bring your vision to life with our striking curved tempered glass, engineered for strength, style, and durability. Ready to make a bold statement in your next project? Reach out today and let’s create something extraordinary together!
