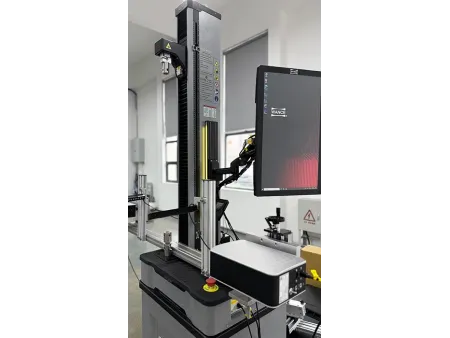

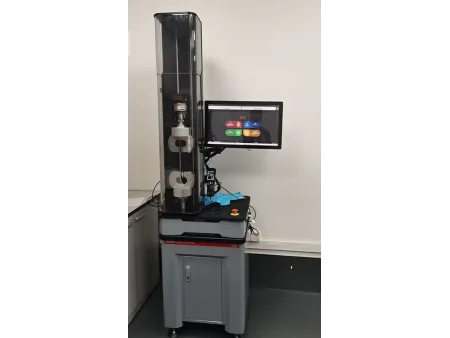

Electromechanical Universal Testing Machine, Single Column Table-Top
Designed with single column table-top structure, the electromechanical universal testing machine is engineered for low-force material testing, providing load capacities up to 5kN for tensile, compression, bending, shear, peel, and tear applications. Its compact yet high-rigidity single column frame is ideal for laboratories with limited workspace, while still delivering outstanding testing accuracy.
To support diverse application needs, the electromechanical tester offers both standard and extended-height frame options, accommodating larger specimens and more complex test setups.
For enhanced structural stiffness and superior motion precision, the single-column design integrates a high-precision linear guide system, ensuring smooth crosshead movement and accurate test performance across the entire load range.
Key Features- Max. test speed
2400mm/min - Max. return speed
3000mm/min
Plastics, rubber, electronic connectors, wire and cable, metal wire, films, textiles, adhesives, biomaterials, elastomers, food packaging materials, paper products, springs, and more.
- ISO 7500-1, ISO 9513, ISO527, ISO 694, ISO 178, ISO 1922, ISO 7743, ISO 34, ISO 37, ISO 1184, ISO 6383, ISO 3036, ISO 13934, ISO 13937, ISO 8510, ISO 1924
- ASTM E8, ASTM E4, ASTM E 83, ASTM D638, ASTM D695, ASTM D790, ASTM D732, ASTM D412, ASTM D882, ASTM F1306, ASTM D5053, ASTM D624
- GB/T 1040, GB/T 1041, GB/T 9341, GB/T 328, GB/T2568, GB/T 528, GB/T2790, GB/T 2791, GB/T 16491, GB/T 2611
- JJG 139, JJG 475
| Model | |||||||
| Capacity, kN | 5 | 2.5 | 1 | 0.5 | 0.1 | 0.05 | 0.01 |
| Frame type | Table-top | ||||||
| Test space | Single space | ||||||
| Max. speed, mm/min | 2400 | ||||||
| Min. speed, mm/min | 0.00005 | ||||||
| Max. return speed, mm/min | 3000 | ||||||
| Position resolution, μm | 0.0133 | ||||||
| Frame stiffness, kN/mm | 10 | ||||||
| Net weight, kg | 108 | ||||||
| Power | 600W | ||||||
| Electric supply | 220V±10%, 50Hz/60Hz, single-phase | ||||||
| Measured accuracy | Class 0.5 | ||||||
| Force range | 500N-5kN 0.2%-100%FS, 10N-250N 0.4%-100%FS | ||||||
| Accuracy of test speed | ±0.2% of set speed | ||||||
| Position accuracy | ±0.2% of set position, or 0.01mm, whichever is bigger | ||||||
| Force resolution | 1/600,000FS | ||||||
| Extension resolution | 1/600,000FS | ||||||
| Overall dimension AxBxC | Crosshead travel H | Test width W |
| 580x520x1580 | 960 | 100 |
- Load Cell
- Control Handset
- Smart Light-Guided Interaction System
- Linear Guide Rail for Enhanced Stiffness
