Electromechanical Universal Testing Machine, Dual Column Table-Top
The electromechanical universal testing machine, featuring dual column table-top configuration, is designed for medium-load material testing, offering load capacities up to 10kN for tensile, compression, bending, shear, peel, and other complex mechanical applications. It is suitable for testing both metallic and non-metallic materials.
A high-rigidity dual-column frame paired with a wide-span crosshead delivers exceptional resistance to off-center loading, ensuring stable, high-precision performance even during large-deformation tests.
To support a broad range of specimen sizes and test configurations, the electromechanical universal testing machine is available in both standard and extended-height frame options.
The dual-column guide system provides superior lateral rigidity, ensuring higher alignment accuracy and improved measurement precision. With a maximum test speed of 2000mm/min and a return speed of 2400mm/min, the system significantly boosts overall testing efficiency.
Plastics, rubber, electronic connectors, wire and cable, metal wire, films, textiles, adhesives, biomaterials, elastomers, food packaging, small components, paper products, springs, and more.
- ISO 7500-1, ISO 9513, ISO527, ISO 694, ISO 178, ISO 1922, ISO 7743, ISO 34, ISO 37, ISO 1184, ISO 6383, ISO 3036, ISO 13934, ISO 13937, ISO 8510, ISO 1924
- ASTM E8, ASTM E4, ASTM E 83, ASTM D638, ASTM D695, ASTM D790, ASTM D732, ASTM D412, ASTM D882, ASTM F1306, ASTM D5053, ASTM D624
- GB/T 1040, GB/T 1041, GB/T 9341, GB/T 328, GB/T2568, GB/T 528, GB/T2790, GB/T 2791, GB/T 16491, GB/T 2611
- JJG 139, JJG 475
| Model | |||||||
| Capacity, kN | 10 | 5 | 2 | 1 | 0.5 | 0.2 | 0.1 |
| Frame type | Desktop | ||||||
| Test space | Single space | ||||||
| Max. speed, mm/min | 2000 | ||||||
| Min. speed, mm/min | 0.00005 | ||||||
| Max. return speed, mm/min | 2400 | ||||||
| Position resolution, μm | 0.011 | ||||||
| Crosshead travel (H), mm | 1090 | ||||||
| Test width (W), mm | 420 | ||||||
| Dimension (AxBxC), mm | 770x640x1700 | ||||||
| Touch screen width (A1), mm | 1250 | ||||||
| Frame stiffness, kN/mm | 50 | ||||||
| Weight, kg | 270 | ||||||
| Power | 1kW | ||||||
| Voltage | Single-phase AC220V±10%, 50Hz/60Hz | ||||||
| Calibration accuracy | Class 0.5 | ||||||
| Force range | 500N-10kN 0.2%-100%FS, 10N-250N 0.4%-100%FS | ||||||
| Speed accuracy | ±0.2% of set speed | ||||||
| Position accuracy | ±0.2% of set position, or 0.01mm, whichever is bigger | ||||||
| Force resolution | 1/600000FS | ||||||
| Extension resolution | 1/600000FS | ||||||

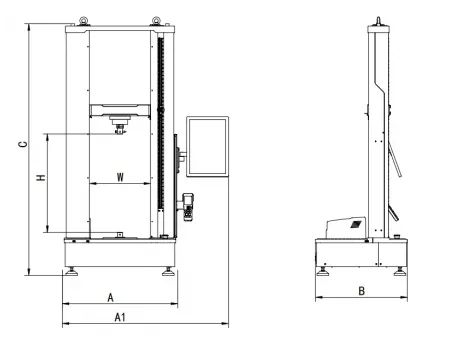

| Model | Overall dimension | Crosshead travel | Test width | Main unit dimensions |
| AxBxC | H | W | A1 | |
| Standard model | 770x640x1700 | 1090 | 420 | 1250 |

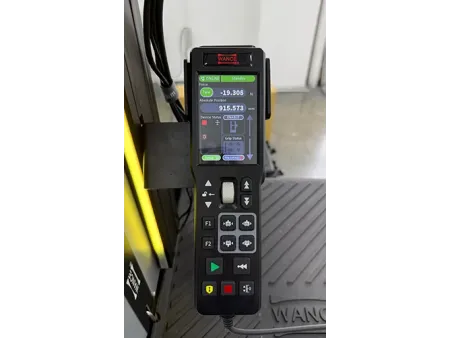

- Control Handset
- Smart Light-Guided Interaction System
- Controller
- Grip
