Oil-Cooled Motorized Pulley (Ø320-800mm)
Request a Quote
TDY

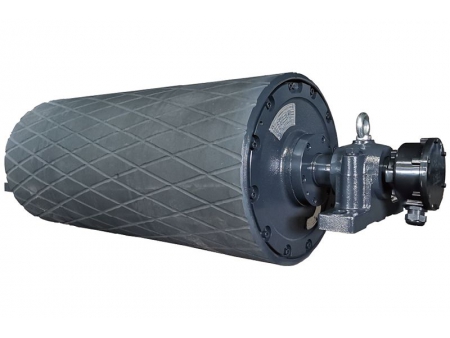

Drum motor used in belt conveyors for bulk handling
TDY type oil-cooled motorized pulley, a commonly used drum motor, comes with a high-efficiency aluminum shell motor, with cast iron front and rear end cover. The motor supplied by professional manufactures comes with performance indicators that are no lower than the standards of high-efficiency motors of the same power rating.
Applications

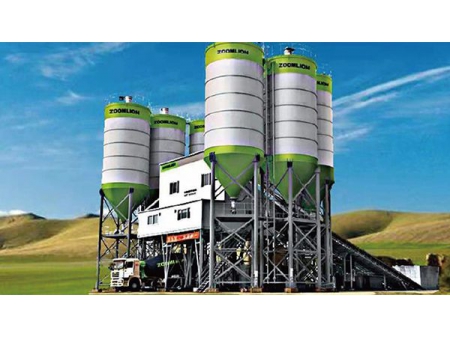

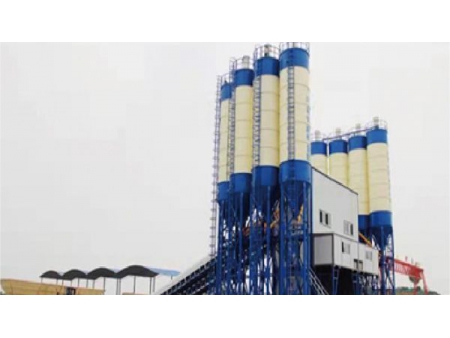

Batching plant, mobile crushing & sorting station
Technical Data
| Drum Diameter D mm | Motor Power P kW | Belt Width B mm | Belt Speed V m/s | Weight M kg | |||||||||||
| 0.25 | 0.32 | 0.4 | 0.5 | 0.63 | 0.8 | 1.0 | 1.25 | 1.6 | 2.0 | 2.5 | 3.15 | ||||
| Ø320 | 2.2/3/4 | 500/650/800/1000 | △ | △ | √ | √ | √ | √ | √ | √ | √ | 235/245/255/260 | |||
| 5.5/7.5 | 500/650/800/1000 | √ | √ | √ | √ | √ | √ | 269/275/283/290 | |||||||
| Ø400 | 2.2/3/4 | 500/650/800/1000 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | 253/267/277/300 | ||
| 5.5/7.5 | 500/650/800/1000 | √ | √ | √ | √ | √ | √ | √ | 267/290/320/350 | ||||||
| 11/15 | 800/1000 | √ | √ | √ | 380/442 | ||||||||||
| Ø500 | 2.2/3 | 500/650/800/1000 | △ | △ | △ | △ | △ | △ | △ | △ | △ | 298/313/343/365 | |||
| 4/5.5 | 500/650/800/1000 | △ | △ | √ | √ | √ | √ | √ | √ | √ | √ | √ | 365/401/430/442 | ||
| 7.5/11 | 650/800/1000/1200 | √ | √ | √ | √ | √ | √ | √ | √ | √ | 475/512/550/590 | ||||
| 15/18.5 | 800/1000/1200 | √ | √ | √ | √ | √ | √ | √ | √ | 575/615/665 | |||||
| 22 | 800/1000/1200 | √ | √ | √ | √ | √ | 585/625/680 | ||||||||
| Ø630 | 4/5.5 | 650/800/1000/1200/1400 | △ | △ | △ | △ | √ | √ | √ | √ | √ | √ | √ | √ | 565/572/603/673/750 |
| 7.5/11 | 650/800/1000/1200/1400 | △ | △ | △ | √ | √ | √ | √ | √ | √ | √ | √ | 608/674/706/776/854 | ||
| 15 | 800/1000/1200/1400 | √ | √ | √ | √ | √ | √ | √ | 692/724/794/870 | ||||||
| 18.5 | 800/1000/1200/1400 | √ | √ | √ | √ | √ | √ | 730/762/832/910 | |||||||
| 22 | 800/1000/1200/1400 | √ | √ | √ | √ | √ | 740/772/842/920 | ||||||||
| 30/37 | 1000/1200/1400/1600 | √ | √ | √ | √ | √ | 980/1050/1130/1150 | ||||||||
| 45 | 1000/1200/1400/1600 | √ | √ | √ | √ | √ | 1010/1090/1150/1210 | ||||||||
| Ø800 | 11/15 | 800/1000/1200/1400 | √ | √ | √ | √ | √ | 797/829/886/957 | |||||||
| 18.5/22 | 800/1000/1200/1400 | √ | √ | √ | 845/877/947/1025 | ||||||||||
| 30/37 | 1000/1200/1400/1600 | √ | √ | √ | √ | 1050/1100/1150/1200 | |||||||||
| 45 | 1000/1200/1400/1600 | √ | √ | √ | 1080/1130/1180/1230 | ||||||||||
