Solvent Washable Flexo Printing Plates Manufacturer

Solvent Washable Flexo Printing Plates

Request a Quote

View All: http://flexoprinting-plate.com/1-1-solvent-washable-flexo-printing-plates-analog.html

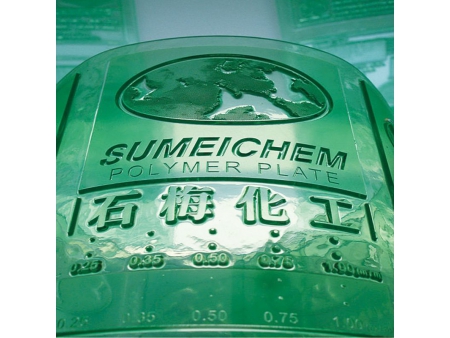

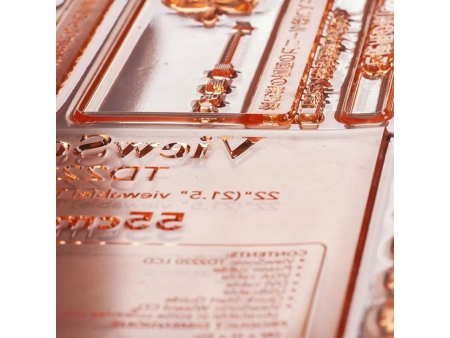

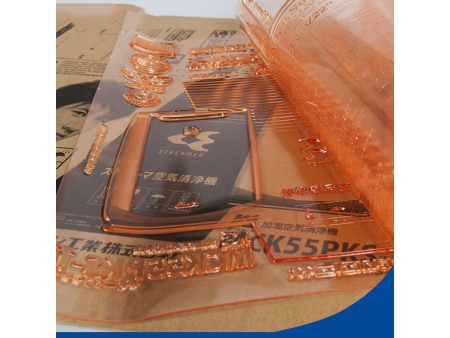

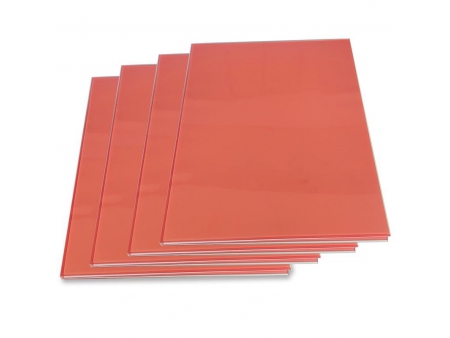

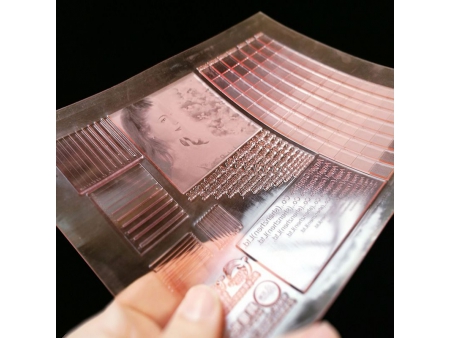

Analog photopolymer flexo plate

Flexographic printing boasts low production cost, flexible combination of process, and the use of water-based ink, making it an environmentally friendly method of printing better than other printing processes such as offset printing and gravure printing.

Our company’s solvent-washable flexo printing plates (analog) are independently developed by a professional technical team and come in different thicknesses of 3.94mm, 2.84mm, 2.28mm, 1.7mm, 1.14mm etc. They are used in many printing fields such as corrugated boxes, flexible packaging, eco-friendly bags, tissues, labels, etc.

Additionally, our company can also customize production of analog photopolymer flexo plates based on customers’ different thickness and usage requirements.

Flexo Plate to Print On

Options by Thickness

1.14mm
1.7mm
2.28mm
2.84mm
3.94mm

Solvent Washable Analog Flexo Plate With Thickness 1.14mm

Sizes
762mm×1016mm
1067mm×1524mm

Parameters

Hardness (°A): 67
Image Reproduction (L/cm): 1-98%
Min. Isolated Dot Size (μm): 100
Min. Positive Line Width (mm): 0.1
Recommended Relief Depth (mm): 0.6-1.0
Exposure Light Source: Ultraviolet A
Availability for Digital Imaging System: No
Tolerance Range of Raw Material Thickness (μm): /-30
Suitable Ink: Water-based ink

Applications

Flexible packaging / thin film printing
Handbags
Labels / signs
Paper / folding boxes
Beverage containers

Features

Good reproduction of thin lines and dots
Wide exposure latitude
Fast photosensitivity
High flexibility, good resilience, and high printing precision
Low surface stickiness, easy to remove adhesives
Good resistance to ozone

Solvent Washable Analog Flexo Plate With Thickness 1.7mm

Sizes
762mm×1016mm
1067mm×1524mm
1270mm×2032mm
1320mm×2032mm

Parameters

Hardness (°A): 63, 73
Image Reproduction (L/cm): 1-98%
Min. Isolated Dot Size (μm): 100
Min. Positive Line Width (mm): 0.1
Recommended Relief Depth (mm): 0.5-0.7
Exposure Light Source: Ultraviolet A
Availability for Digital Imaging System: No
Tolerance Range of Raw Material Thickness (μm): /-30
Suitable Ink: Water-based ink

Applications

Labels / signs
Paper / folding boxes
Paper boxes
Pre-printed packaging
Breathable film
Stamp

Features

Wide exposure latitude
Fast photosensitivity
High resolution and high printing accuracy
Good resistance to ozone
Low surface stickiness, easy to remove adhesives
High printing quality

Solvent Washable Analog Flexo Plate With Thickness 2.28mm

Sizes
762mm×1016mm
1067mm×1524mm
1270mm×2032mm
1320mm×2032mm

Parameters

Hardness (°A): 52
Image Reproduction (L/cm): 2-98%
Min. Isolated Dot Size (μm): 100
Min. Positive Line Width (mm): 0.1
Recommended Relief Depth (mm): 0.6-1.0
Exposure Light Source: Ultraviolet A
Availability for Digital Imaging System: No
Tolerance Range of Raw Material Thickness (μm): /-30
Suitable Ink: Water-based ink

Applications

Flexible packaging / thin film printing

Cloth labels

Handbags

Features

Wide exposure latitude

Fast photosensitivity

High flexibility, good resilience, and high printing precision

Good resistance to ozone and solvents

Good reproduction of image

Little size change of halftone dots

Solvent Washable Analog Flexo Plate With Thickness 2.84mm

Sizes
1067mm×1524mm
1270mm×2032mm
1320mm×2032mm

Parameters

Hardness (°A): 52
Image Reproduction (L/cm): 2-98%
Min. Isolated Dot Size (μm): 100
Min. Positive Line Width (mm): 0.1
Recommended Relief Depth (mm): 0.6-1.0
Exposure Light Source: Ultraviolet A
Availability for Digital Imaging System: No
Tolerance Range of Raw Material Thickness (μm): /-30
Suitable Ink: Water-based ink

Applications

Paper / folding boxes
Labels / signs
Handbags
Paper box printing
Beverage containers

Features

Wide exposure latitude
Fast photosensitivity
High flexibility, good resilience, and high printing precision
Good resistance to ozone
Low surface stickiness, easy to remove adhesives

Solvent Washable Analog Flexo Plate With Thickness 3.94mm

Sizes
762mm×1016mm
1067mm×1524mm
1270mm×2032mm
1320mm×2032mm

Parameters

Hardness (°A): 39±2
Image Reproduction (L/cm): 3-98%
Min. Isolated Dot Size (μm): 500
Min. Positive Line Width (mm): 0.35
Recommended Relief Depth (mm): 1.8-2.0
Exposure Light Source: Ultraviolet A
Availability for Digital Imaging System: No
Tolerance Range of Raw Material Thickness (μm): /-40
Suitable Ink: Water-based ink

Applications

Corrugated boxes

Cardboards

Features

Wide exposure latitude results in excellent image quality without the use of mask.

Strong flexibility reduces the ribboned pattern when printing corrugated boxes.

Shorter exposure time improves plate-making efficiency.

Fine graphic details, precise printing.

Moderate plate hardness and uniform thickness ensures good printing quality.

Great depth of field makes the printing clear and delicate, especially suitable for printing Asian characters.

Outstanding ink transfer performance.

High durability.

High glossiness of the plate surface.

Storage Recommendations

Store the flexo plates in a location that is not exposed to sunlight or UV light.
Control the temperature between 5℃-35℃.
After finishing printing, clean ink on the surface of the flexo plate as quickly as possible and allow the plate to completely dry.
Avoid stacking flexo plates on top of each other; instead, separate them using paper or buffering material.
Maintain good ventilation conditions in the storage room to prevent moisture accumulation.
Use cleaning agents that will not cause resin expansion. If unsure about the characteristics of the cleaning agent, consult our authorized suppliers of flexo printing plates.
