ER 4043 (AlSi5) Aluminium Welding Wire

Request a Quote

Website: http://weldingwire-en.com/1-10-aluminium-welding-wire-er-4043.html

Welding Consumables

Aluminium-silicon filler metal for MIG and TIG welding of 6000 series aluminium and cast alloys

Chemical Designation: AlSi5
Standard: AWS A5.10, GB/T10858-2023

Chemical Composition (%)

Si	Fe	Cu	Mn	Mg	Zn	Ti	AL	Be	Others
									Each	Total
4.5-6.0	≤0.8	≤0.30	≤0.05	≤0.05	≤0.10	0.20	Rest	0.0003	≤0.05	≤0.15

Mechanical Properties

Tensile Strength (MPa): ≥165
Yield Strength (MPa): ≥70
Elongation (%): ≥4

Features

Contains 5% silicon, making it ideal for welding 6xxx series aluminium alloys and cast materials
Offers excellent flow characteristics, helping achieve smooth, well-formed welds
Known for its versatility and strong resistance to hot cracking during welding

Available Sizes

Welding wire: 0.8/1.0/1.2/1.6/2.0/2.4/3.0/3.2/4.0/5.0/6.0mm

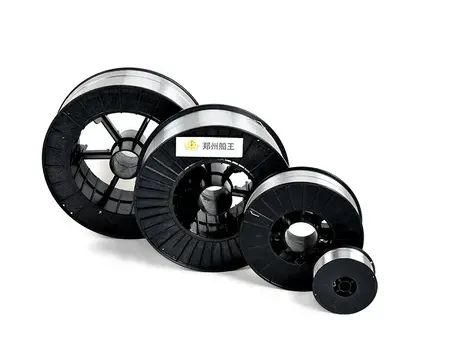

Spool: D300 (9kg), D270 (7kg), D200 (2kg), D100 (0.5kg)

Applications

Commonly used in the automotive industry for welding aluminium radiators, intercoolers, and heat exchangers
Suitable for fabricating container truck bodies where strong, consistent welds are needed
Frequently applied in the assembly of aluminium bicycle frames and sports equipment
Ideal for joining refrigeration-related aluminium parts that require corrosion resistance
Works well for welding and repairing cast aluminium alloys

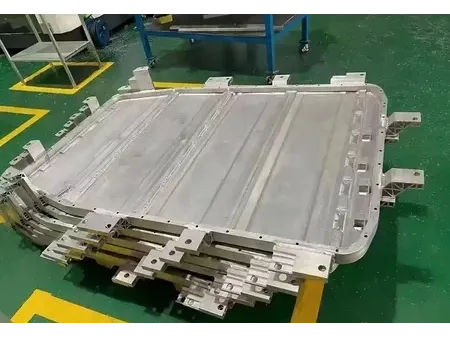

A good choice for welding aluminium housings and structural casings
Suitable for base metals like 6061, 6063 and other 6xxx series aluminium alloys

Packaging

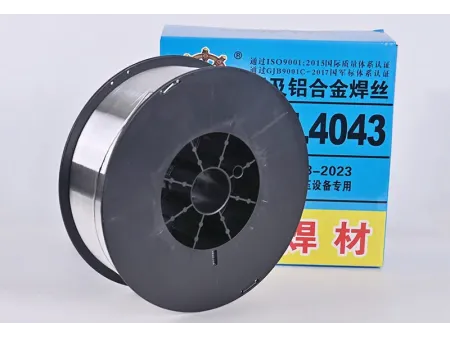

Spooled welding wire
Drum packaged welding wire
Straight welding wire
Coiled welding wire

MIG wire diameter: 0.8mm, 1.0mm, 1.2mm, 1.6mm, 2.0mm
Package: D300 (9kg/spool), D270 (7kg/spool)

MIG wire diameter: 1.2mm, 1.6mm
Package: drum D660 (100kg/drum)

TIG wire diameter: 2.0mm, 2.4mm, 3.0mm, 3.2mm, 4.0mm, 5.0mm, 6.0mm
Package: 1000mm length (10kg/box)

TIG wire diameter: 1.6mm, 2.0mm, 2.4mm, 3.0mm, 3.2mm, 4.0mm, 5.0mm, 6.0mm
Coil inner diameter: D450mm, D300mm
Package: 10-17kg/coil

Recommended Welding Method

This aluminium-silicon wire performs best with AC TIG or MIG welding under pure argon shielding. For optimal results, the area to be welded should be thoroughly cleaned before welding. Keep both the welding wire and workpiece dry, and avoid exposing them to moisture or contaminants.
