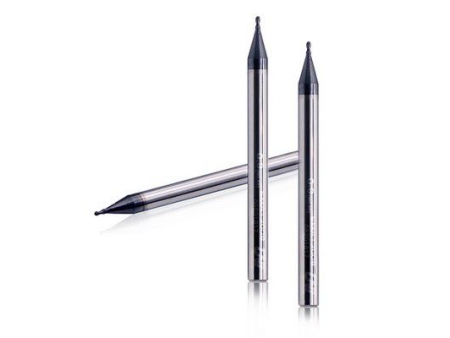

EMA12 0.005" Ball Nose Micro End Mills, 2 Flute Milling Cutter
Request a Quote
- Special edge geometry at the end provides small chip loads and higher metal removal rate
- Offers excellent performance when cutting prehardened steels up to HRc56
- Used for machining molds & dies
- Super micro end mill available with diameters ranging from 0.02~2.9mm
- 2 flute, miniature cutting tools are suitable for high precision milling in medical, optical, electronics and aerospace industries

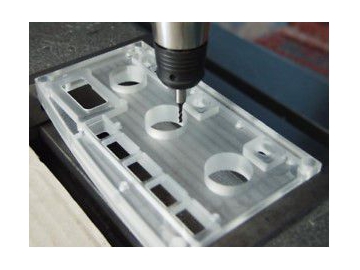

Application
Product Specifications
| Coating | AITiN /TiALN /TiAISiN AITiSiN | HRC | HRC46/56 |
| Helix Angle | 35°/36°/37° | Shank | Cylindrical H6 |
| Material | IMC™ UMG Carbide Rod | Tolerance on Cutting Diameter | 0-0.030 |
Carbide End Mill, 2 Flutes, Miniature, Ball Nose (EMA12)

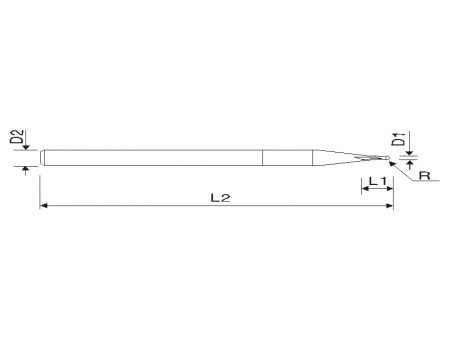

| UNT EDP # Click to Order | Radius R | Mill Dia. D1 | Shank Dia. D2 | Flute Length L1 | O.A.L. L2 | Flutes |
| EMA12003 | R0.15 | 0.3 | 4 | 0.6 | 50 | 2 |
| EMA12004 | R0.20 | 0.4 | 4 | 0.8 | 50 | 2 |
| EMA12005 | R0.25 | 0.5 | 4 | 1 | 50 | 2 |
| EMA12006 | R0.30 | 0.6 | 4 | 1.2 | 50 | 2 |
| EMA12007 | R0.35 | 0.7 | 4 | 1.4 | 50 | 2 |
| EMA12008 | R0.40 | 0.8 | 4 | 1.6 | 50 | 2 |
| EMA12009 | R0.45 | 0.9 | 4 | 1.8 | 50 | 2 |
| EMA12011 | R0.55 | 1.1 | 4 | 2.2 | 50 | 2 |
| EMA12012 | R0.60 | 1.2 | 4 | 2.4 | 50 | 2 |
| EMA12013 | R0.65 | 1.3 | 4 | 2.6 | 50 | 2 |
| EMA12014 | R0.70 | 1.4 | 4 | 2.8 | 50 | 2 |
| EMA12016 | R0.80 | 1.6 | 4 | 3.2 | 50 | 2 |
| EMA12017 | R0.85 | 1.7 | 4 | 3.4 | 50 | 2 |
| EMA12018 | R0.90 | 1.8 | 4 | 3.6 | 50 | 2 |
| EMA12019 | R0.95 | 1.9 | 4 | 3.8 | 50 | 2 |
| EMA12021 | R1.05 | 2.1 | 4 | 4.2 | 50 | 2 |
| EMA12022 | R1.10 | 2.2 | 4 | 4.4 | 50 | 2 |
| EMA12023 | R1.15 | 2.3 | 4 | 4.6 | 50 | 2 |
| EMA12024 | R1.20 | 2.4 | 4 | 4.8 | 50 | 2 |
| EMA12026 | R1.30 | 2.6 | 4 | 5.2 | 50 | 2 |
| EMA12027 | R1.35 | 2.7 | 4 | 5.4 | 50 | 2 |
| EMA12028 | R1.40 | 2.8 | 4 | 5.6 | 50 | 2 |
| EMA12029 | R1.45 | 2.9 | 4 | 5.8 | 60 | 2 |
• End mills with non-standard sizes or specifications not listed above can be customized according to customer needs.
