C-Frame Two Point Deep Drawing Press
DG2 Deep Drawing Presses
- Capacity 60T to 160T
- Stroke length 140mm to 240mm
The DG2 c-frame two point deep drawing press is specially designed for high-precision forming of battery shells and other deep drawn parts. This mechanical gap frame press exceeds Japan’s JIS Grade-1 precision standards and is ideal for deep drawing operations requiring speed, stability, and accuracy.
With a capacity from 60T to 160T and stroke lengths ranging from 140mm to 240mm, the deep drawing press supports efficient, high-speed production. Its one-piece welded structure is stress-relieved through tempering, ensuring exceptional rigidity. Customers are welcome to witness the tempering process at our facility.
All gears are processed to the same standard as leading Japanese brands and ground for high transmission efficiency and low noise. The connecting rods, bearings, and guideways use circulating thin oil lubrication to support long-term high-speed operation. Equipped with a high-torque clutch and brake system from Italian brand Yuyi, the press ensures reliable safety performance.

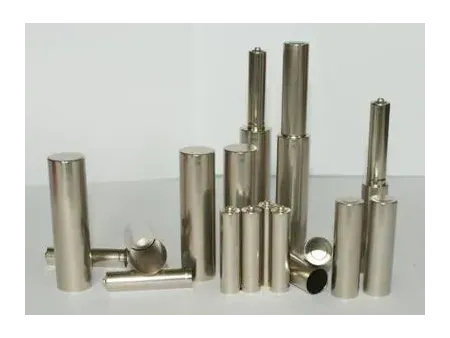

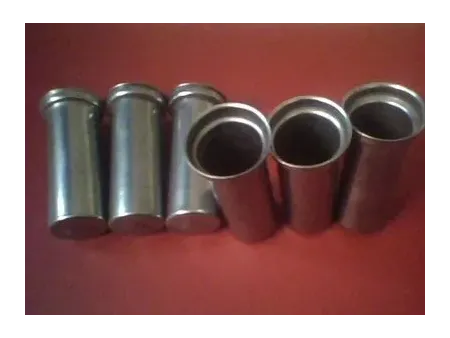

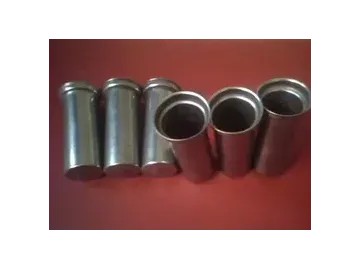

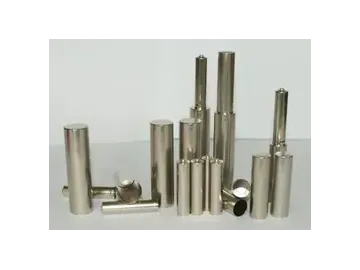

- Battery shells: 7#, 5#, 18650, 21700, 26700, 32650
- Deep drawn components in automotive cooling and related fields
| Model | Unit | | | | |
| Capacity | T | 60 | 80 | 110 | 160 |
| Rated tonnage point | mm | 3.0 | 3.5 | 5 | 6 |
| Stroke length | mm | 140 | 180 | 190 | 240 |
| Max. die height | mm | 260 | 320 | 320 | 380 |
| Slide strokes per minute | S.P.M | 50-100 | 60-80 | 30-50 | 25-45 |
| Slide area | mm | 1460×480×70 | 1460×480×70 | 1760×500×70 | 2040×600×70 |
| Bolster area | mm | 1500×480×130 | 1500×480×130 | 1800×600×130 | 2100×760×150 |
| Max. upper-die weight | kg | 300 | 300 | 700 | 800 |
Our product brochure
The c-frame two point deep drawing press delivers the performance and stability needed for precise deep drawing. Contact us to learn how it can enhance your battery and metal forming production.
