24-600kVA Diesel Generator Sets Powered by DCEC Cummins Engine

Request a Quote

Website: http://dieselgenerator-en.com/1-2-1-powered-by-dcec-cummins-engine.html

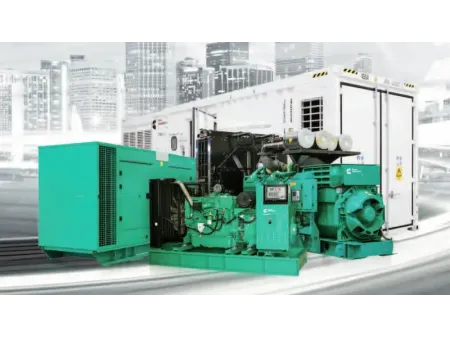

These generator sets feature DCEC Cummins engines built with Cummins’ advanced design and manufacturing expertise, meeting China National VI emission standards. Covering light-, medium-, and heavy-duty engine ranges, they are designed for mid- to small-capacity power needs. Their reliable performance and adaptability make them an excellent fit for trucking, construction machinery, and other industries that require steady, efficient power in demanding conditions.

Frequency	50Hz	60Hz
Prime Power	20-500kVA (17-400kW)	25-550kVA (20-440kW)
Standby Power	24-550kVA (19-440kW)	28-600kVA (22-480kW)

Technical Specifications

50Hz Diesel Generator Sets

Genset Model	Prime PowerkVA/kW	Standby PowerkVA/kW	Engine Model	Fuel ConsumptionL/h	Cylinder	Displacement
CDC24	20/17	24/19	4B3.9-G11	5.7	4L	3.9
CDC28	25/20	28/22	QSB3.9-G31	6.1	4L	3.9
CDC30	27/22	30/24	4B3.9-G1	7.1	4L	3.9
CDC30-1	27/22	30/24	4B3.9-G2	6.7	4L	3.9
CDC34	30/25	34/27	4B3.9-G12	7.4	4L	3.9
CDC42	38/30	42/33	QSB3.9-G33	8.8	4L	3.9
CDC44	40/32	44/35	4BT3.9-G1	10	4L	3.9
CDC44	40/32	44/35	4BT3.9-G2	9.3	4L	3.9
CDC62	56/45	62/50	4BTA3.9-G2	12.9	4L	3.9
CDC69	63/50	69/55	QSB3.9-G35	14.2	4L	3.9
CDC70	65/52	70/56	4BTA3.9-G2	14.9	4L	3.9
CDC70	60/48	70/56	QSB3.9-G2	18	4L	3.9
CDC70-1	65/52	70/56	4BTA3.9-G2	14.9	4L	3.9
CDC90	80/64	90/72	QSB3.9-G3	20	4L	3.9
CDC90-1	80/64	90/72	4BTA3.9-G11	17.6	4L	3.9
CDC94	88/70	94/75	QSB3.9-G37	19.8	4L	3.9
CDC103	94/75	103/82	6BT5.9-G1	21.7	6L	5.9
CDC103-1	94/75	103/82	6BT5.9-G2	22	6L	5.9
CDC105	95/76	105/84	4BTA3.9-G13	18.8	4L	3.9
CDC110	100/80	110/88	4BTAA3.9-G3	24.7	4L	3.9
CDC110-1	100/80	110/88	QSB3.9-G39	23.6	4L	3.9
CDC110-II	100/80	110/88	QSB5.9-G2	26	6L	5.9
CDC115	105/84	115/92	6BT5.9-G2	24.2	6L	5.9
CDC125	115/92	125/100	6BTA5.9-G2	27	6L	5.9
CDC1254	112/90	125/100	QSB5.9-G30	27.7	6L	5.9
CDC138	125/100	138/110	6BTA5.9-G2	27	6L	5.9
CDC138-4	125/100	138/110	6BTAA5.9-G2	30	6L	5.9
CDC140	125/100	140/112	QSB5.9-G3	31	6L	5.9
CDC145	135/108	145/116	6BTAA5.9-G2	30	6L	5.9
CDC150	125/100	150/120	QSB5.9-G31	31.5	6L	5.9
CDC165	150/120	165/132	6BTAA5.9-G12	34	6L	6.7
CDC165-4	150/120	165/132	QSB6.7-G3	38	6L	6.7
CDC165-II	150/120	165/132	QSB5.9-G33	37.9	6L	5.9
CDC200	180/144	200/160	QSB6.7-G4	43	6L	6.7
CDC200-	180/145	200/160	6CTA8.3-G1	42	6L	8.3
CDC200-11	180/145	200/160	6CTA8.3-G2	42	6L	8.3
CDC206	188/150	206/165	QSB6.7-G32	40.4	6L	6.7
CDC215	200/160	215/172	6CTAA8.3-G2	45	6L	8.3
CDC220	200/160	220/176	QSL8.9-G2	55	6L	8.9
CDC250	225/180	250/200	QSL8.9-G3	57	6L	8.9
CDC250-1	NA/NA	250/200	6CTAA8.3-G9	57	6L	8.3
CDC250-1	225/180	250/200	QSB6.7-G31	48.8	6L	6.7
CDC264	250/200	264/211	6LTAA8.9-G2	53	6L	8.9
CDC275	250/200	275/220	6LTAA8.9-G3	54	6L	8.9
CDC275-1	250/200	275/220	QSL8.9-G4	60	6L	8.9
CDC275-11	250/200	275/220	QSL8.9-G34	55.6	6L	8.9
CDC300	270/216	300/240	6LTAA9.5-G3	58	6L	9.5
CDC312	288/230	312/250	QSL8.9-G33	63.1	6L	8.9
CDC350	320/256	350/280	6LTAA9.5-G1	70	6L	9.5
CDC350-	320/256	350/280	QSL8.9-G30	68.6	6L	8.9
CDC400	360/288	400/320	QSZ13-G6	72.3	6L	13
CDC425	388/310	425/340	6ZTAA13-G3	76.5	6L	13
CDC450	400/320	450/360	QSZ13-G7	82	6L	13
CDC468	438/350	468/375	QSZ13-G2	78.4	6L	13
CDC475	438/350	475/380	6ZTAA13-G2	89.1	6L	13
CDC475-1	438/350	475/380	6ZTAA13-G4	91.4	6L	13
CDC500	450/360	500/400	QSZ13-G5	84	6L	13
CDC525	500/400	525/420	Q5Z13-G3	101	6L	13
CDC550	500/400	550/440	QSZ13-G10	101	6L	13

60Hz Diesel Generator Sets

Genset Model	Prime Power kVA/kW	Standby Power kVA/kW	Engine Model	Fuel Consumption L/h	Cylinder	Displacement L
CDC28	25/20	28/22	4B3.9-G11	7.1	4L	3.9
CDC33	30/24	33/26	4B3.9-G2	7.5	4L	3.9
CDC38	35/28	38/30	4B3.9-G12	9.4	4L	3.9
CDC50	45/36	50/40	4BT3.9-G2	9.3	4L	3.9
CDC70	64/51	70/56	4BTA3.9-G2	17.4	4L	3.9
CDC85	75/60	85/68	4BTA3.9-G2	17.4	4L	3.9
CDC100	90/72	100/80	4BTA3.9-G11	20.1	4L	3.9
CDC115	105/84	115/92	6BT5.9-G2	29.7	6L	5.9
CDC138	125/100	138/110	6BT5.9-G2	29.7	6L	5.9
CDC145	131/105	145/116	6BTA5.9-G2	31	6L	5.9
CDC156	145/116	156/125	6BTAA5.9-G2	34	6L	5.9
CDC175	160/128	175/140	6BTAA5.9-G12	38	6L	5.9
CDC209	190/152	209/167	6CTA8.3-G2	44	6L	8.3
CDC230	210/168	230/184	6CTAA8.3-G2	49	6L	8.3
CDC275	NA/NA	275/220	6CTAA8.3-G9	57	6L	8.3
CDC285	260/208	285/228	6LTAA8.9-G2	59	6L	8.9
CDC310	280/224	310/248	6LTAA8.9-G3	62	6L	8.9
CDC315	285/228	315/252	6LTAA9.5-G3	65	6L	9.5
CDC350	320/256	280/350	6LTAA9.5-G1	68	6L	9.5
CDC425	388/310	425/340	QSZ13-G6	78.1	6L	13
CDC4254	388/310	425/340	6ZTAA13-G3	76.5	6L	13
CDC468	438/350	468/375	Q5Z13-G2	77	6L	13
CDC475	438/350	475/380	6ZTAA13-G2	95.6	6L	13
CDC475-1	438/350	475/380	6ZTAA13-G4	98.1	6L	13
CDC488	450/360	488/390	QSZ13-G7	95	6L	13
CDC525	475/380	525/420	QSZ13-G5	89	6L	13
CDC500	475/380	500/400	QSZ13-G3	101	6L	13
CDC600	550/440	600/480	QSZ13-G11	121	6L	13
