Steel Bonding Adhesive (Paste)
Structural Adhesives
Strong construction adhesives for bonding steel parts to concrete structures for structural strengthening
The steel bonding adhesive (paste)is a high-performance and labor-efficient epoxy material, engineered for structural strengthening and retrofitting. It is widely used for bonding steel plates to concrete, reinforcing load-bearing members, and securing equipment to structural surfaces, while ensuring high performance and structural reliability in critical construction environments.
Ideal for dry application scenarios, the adhesive offers high bond strength, easy handling, and excellent compatibility with concrete and steel substrates, making it suitable for both repair and reinforcement in civil, industrial, and infrastructure projects.
Certifications & Reports
- Mechanical Performance Test Report
- Batch Quality Inspection Report
- Flammability Classification Report
- Material Safety Data Sheet
- Ethylenediamine Content Analysis Report
Meets the technical performance standards of GB 50367-2013 (Code for Design of Reinforcement Anchoring for Concrete Structures) and GB 50728-2011 (Technical Code for Safety Evaluation of Reinforcement Materials for Engineering Structures)
| Property | Test Result | |
| Colloidal performance | Tensile strength | 41.6MPa |
| Modulus of elasticity in tension | 4.6×10³MPa | |
| Elongation | 1.3% | |
| Bending strength | 80.4MPa,and not in fracture damage form | |
| Compressive strength | 87.2MPa | |
| Bonding Capacity | Steel-to-steel tensile shear strength | 20.5MPa |
| Steel-to-steel T impact peeling length | 0mm (no crack) | |
| Steel-to-steel bonding tensile strength | 38.9MPa | |
| Steel-to-C45 concrete positive tensile strength | 3.9MPa,with cohesive failure of concrete | |
| Heat distortion temperature | 66.8℃ | |
| Nonvolatile content | 99.7% | |

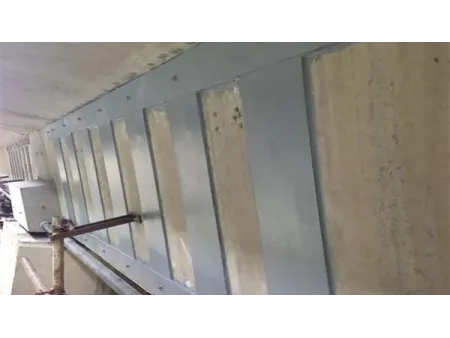

- Bonding steel plates to concrete or other steel surfaces
- Fixing metal frames to concrete substrates

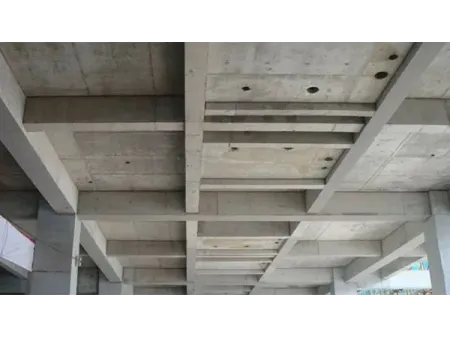

- Strengthening beams and columns to increase load capacity
- Securing bearing pads and base plates in bridge structures
- Anchoring equipment bases to concrete foundations
- Bonding rigid materials such as stone, ceramic tiles, and wood in construction or repair work
- Lightweight formula with a density of only 1.6 g/cm³—approximately 30% lighter per volume than typical market alternatives, reducing material weight without compromising strength
- Persistent thixotropy prevents adhesive flow, minimizing the risk of hollow spots and rework caused by sagging or displacement
- Maintains excellent vertical and overhead workability, with no sagging during application
- Offers strong resistance to moisture, heat aging, chemical corrosion, and water exposure; can be applied in low temperatures and, in special variants, even in wet conditions
- Available in standard, low-temperature, and damp-environment curing formulations, adaptable to varied on-site conditions
- Provides high bonding strength, exceptional toughness, and peel resistance; flexural strength reaches up to 90.6 MPa
- Reinforced with eco-friendly nano-fillers, delivering compressive strength up to 56.2 MPa
