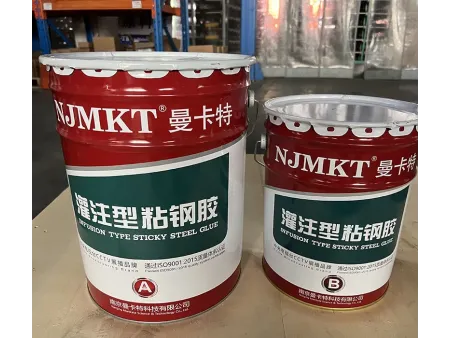

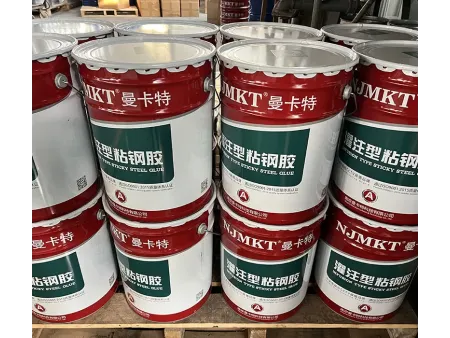

Steel Bonding Adhesive (Liquid)
Structural Adhesives
Strong construction adhesives for bonding steel parts to concrete structures for structural strengthening
The steel bonding adhesive (liquid) is a groutable structural epoxy, developed for precision filling and high-strength bonding in steel-to-concrete reinforcement applications. Certified through structural safety evaluations, this metal bonding adhesive delivers outstanding impact resistance and fatigue durability, making it suitable for use in dynamic load environments such as railway and highway bridge repairs.
Formulated to meet diverse jobsite demands, the liquid steel bonding adhesive supports curing in standard, humid, and low-temperature conditions, providing flexibility for installation across varying climates and working environments.
Certifications & Reports
- Material Safety Data Sheet
- Batch Quality Inspection Report
Meets the technical performance standards of GB 50367-2013 (Code for Design of Reinforcement Anchoring for Concrete Structures) and GB 50728-2011 (Technical Code for Safety Evaluation of Reinforcement Materials for Engineering Structures)
| Property | Test Result |
| Tensile strength | 56.5MPa |
| Modulus of elasticity in tension | 2.99×10³MPa |
| Elongation | 2.28% |
| Bending strength | 90.6MPa,and not in fracture damage form |
| Compressive strength | 97.1MPa |
| Steel-to-steel tensile shear strength | 23.7MPa |
| Steel-to-steel T impact peeling length | 0mm |
| Steel-to-steel bonding tensile strength | 35.2MPa |
| Steel-to-C45 concrete positive tensile strength | 5.0MPa,with cohesive failure of concrete |
| Heat distortion temperature | 66.1℃ |
| Viscosity | 312mPa·S |
| Nonvolatile content | 99.5% |

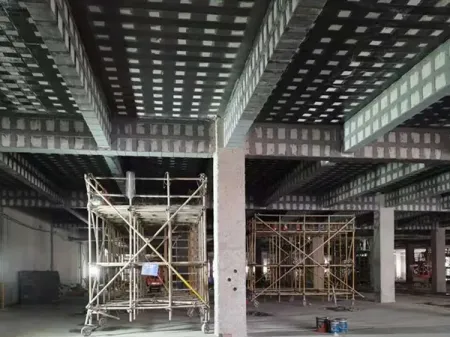

- Structural reinforcement in buildings, bridges, and infrastructure
- Crack repair in concrete elements
- Gap filling at assembly joints for prefabricated structures
- Grouting of equipment foundations for secure and level installation
- Bonding and repair of polymer-based materials such as ceramics, stone, glass, and wood
- Installation of curtain walls, and fixing of decorative stone or tile finishes
- In the electronics industry, used for bonding, sealing, coating, protection, and reinforcement of electronic components and instrument parts
- Impact and fatigue resistant, suitable for use under dynamic loads—ideal for railway and highway bridge repairs
- Excellent resistance to moisture, heat aging, chemical corrosion, and water exposure
- Low shrinkage after curing, with a wide mixing ratio tolerance and extended working time, enhancing field flexibility
- Available in standard, low-temperature, and moisture-curing formulations to suit various site conditions
- Provides high bonding strength, with exceptional toughness, peel resistance, and impact durability
- Cures effectively under a wide temperature range, even at ambient pressure and room temperature
- Cured density of approximately 1.05 g/cm³; usable time after mixing ranges from 20 to 50 minutes, depending on ambient temperature, with initial gel time of approximately 2 to 6 hours
