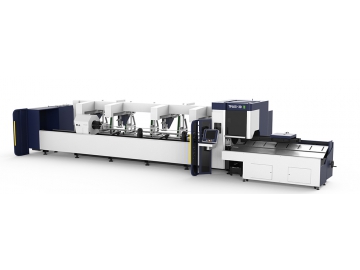

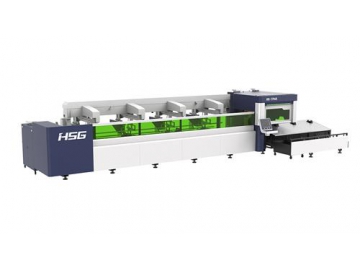

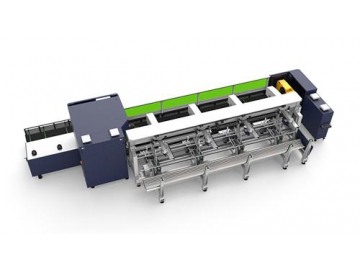

TP65 Professional 5-Axis Tube Cutting Machine
Equipped with a three-dimensional cutting head, the TP65 professional 5-axis tube cutting machine is used to operate 5 axis machining, and can cut metal pipes in a variety of shapes, thanks to a swing angle that is able to reach 135°.
Applicable materials: Stainless steel, carbon steel, aluminum, brass, copper, galvanized plates, cold-rolled sheets and more.
Applicable materials: Square, circular, rectangular and oval, as well as special shapes such as D shaped and hexagonal.
Application industry: This tube laser cutter is used for processing of metal sheets, kitchenware, furniture, lighting, gym equipment, automobile manufacturing and more.
| Processing Area(circular tube) | Φ20-Φ210mm |
| Processing Area(square tube) | 20×20-150×150mm |
| Machinable Pipe Length | 6500mm |
| Laser power | 1000W-4000W |
| Laser Wavelength | 1070-1080mm |
| Max. moving speed | 100m/min |
| Max. acc. speed | 1.0G |
| Positioning Accuracy | 0.03mm/m |
| Reposition Accuracy | ±0.03mm |
| Power Supply | 380V/50Hz |
| Machine loading weight | 3000Kg |
| Machine dimensions | 12000mm×3500mm×2800mm |
* We offer lasers in various power levels. The materials and thicknesses to be cut directly depend on the laser power.

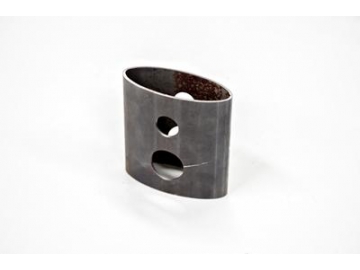

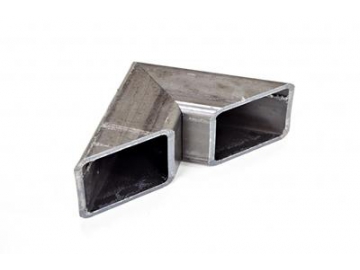

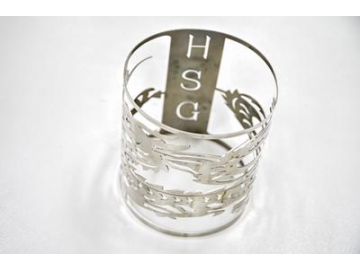

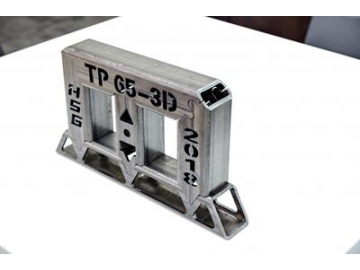

- Stainless steel
- Carbon steel
- Brass
- Copper
- Aluminum
- Galvanized steel
- Cold rolled steel
- Titanium
- Electrolytic steel
- Silicon steel

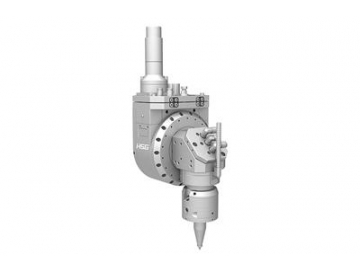

- Cutting headThis machine uses a three-dimensional five-axis cutting head, and its maximum swing angle is 135°.
-

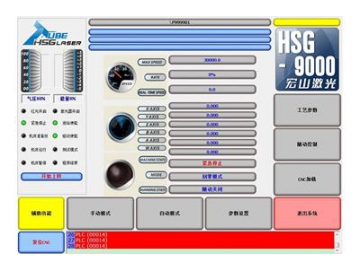

- Operation systemThe HSG9000 operation software is a professional operation software researched and developed independently by our company for fiber laser cutters in order to facilitate easier operation.
-

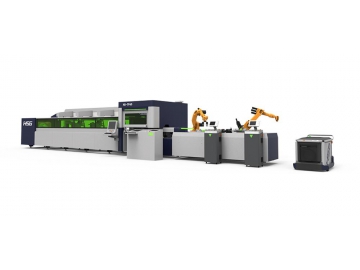

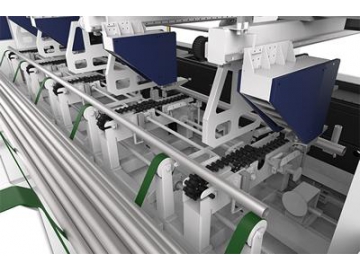

- Automatic tube bundle loading and unloading systemThe automatic tube bundle loading and unloading system is controlled using a numerical control system to feeding the pipes. The loading device will clamp a single pipe from the bundle, and send it forward to be inspected. This decreases the cost of manually delivery materials, as it can also load pipe bundles and straightly connect with the pipe cutting process.
-
