TP65S Professional 5-Axis Tube Cutting Machine
Request a Quote

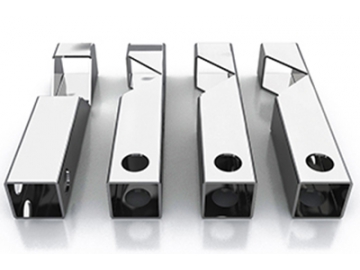

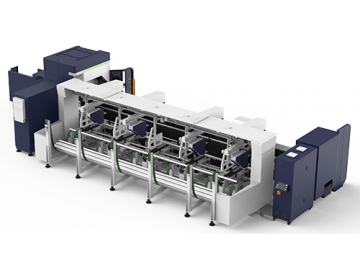

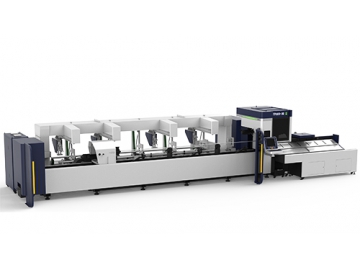

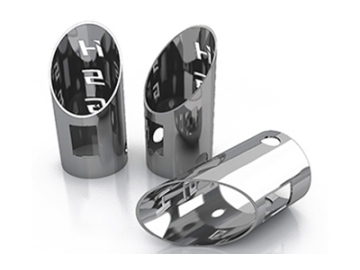

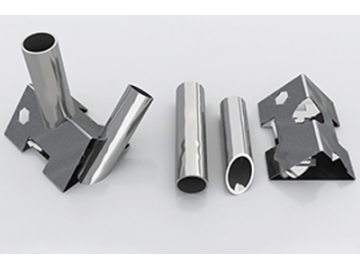

TP65S professional 5-axis tube cutting machine is specially designed for high speed tube cutting. It can be used to cut various round tube, square tube and shaped tube of which the range is from φ12mm-φ254mm. This machine adopts the technique of rapid cutting so that it has superior cutting speed comparing with tube cutting machine of the same series. It can also realize faster automatic material feeding. The time of accomplishing tube feeding once is only 19 seconds. This cutting machine can improve tube processing efficiency. Thus it is the most ideal selection for upgrading of workshop capacity.
- Comparison between flight cutting and traditional cutting
During the continuous cutting operations, the cutting head is not need to be stopped and lifted. It can still accomplish series of cutting motions smoothly. This is called as flight cutting
- Comparing of cutting speed of TP65S and traditional cutting machine
Features

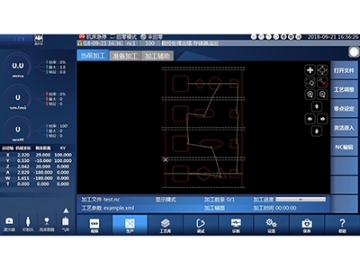

- The intelligent operation system can show the planar graph of cutting section of tube. The system is also equipped with various supporting functions which can provide simple and rapid operating experience. There are also 50 kinds of joggle joint crafts stored in the database. The system can automatically recognize the shape of different tubes and accomplish cutting as you need. There is no need of debugging so it can realize unmanned operation.
-

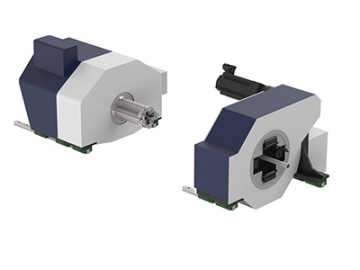

- The digital intelligent chuck can easily recognize and clamp various tube material without manual adjustment. The intelligent chuck is equipped with professional pressure feedback system which can realize automatic pressure adjustment according the diameter and wall thickness of different tubes. It will also measure and alarm in real time. By adopting this chuck, the production is highly efficient and safe.
-

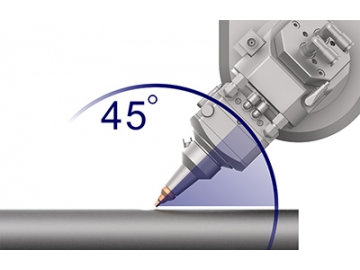

- Besides the normal X/Y axis cutting, this TP65S professional 5-axis tube cutting machine can also realize B/Y axis high speed cutting. For the B axis can swing around, the cutting can be more rapidly and flexibly accomplished by the cutting head. The max cutting accelerated speed can be up to 3G.
-
Parameters
| Tube diameter | φ12-254mm |
| Laser energy | 1000W-4000W |
| Max. moving speed | 150m/min |
| Max. accelerated speed | 1.2G |
| Positioning accuracy | ±0.03mm/m |
| Repositioning accuracy | ±0.02mm |
| Machine weight | 15000Kg |
| Overall dimensions | 12000×4500×2400mm |
