6-Axis Robotic 3D Laser Cutting Machine Manufacturer

6-Axis Robotic 3D Laser Cutting Machine

Request a Quote

View All: http://lasercut-group.com/2-3-1-3d-robot-fiber-laser-cutting-machine.html

Introduction

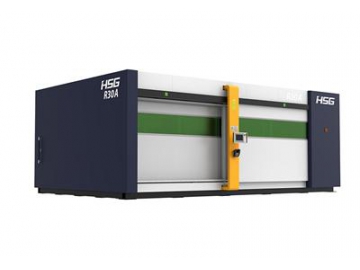

The R30A 6-axis robotic 3D laser cutting machine features an exceptionally safe operation due to its closed structure. The cutter is equipped with a six-axis manipulator for the machining of complicated 3D metal products. The R30A 3D cutter is widely used for cutting metal sheets for automobiles, kitchen appliances, fitness equipment and more.

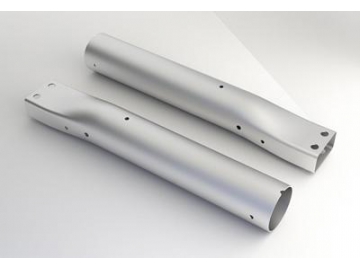

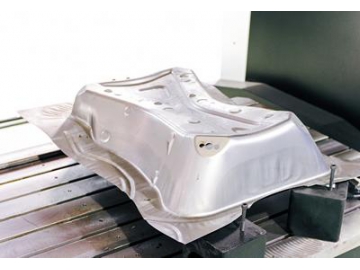

Application

Technology parameter

Max. Loading Weight	30kg
Rated Loading Weight	16kg
Arm Length	2000mm
Joint Quantity	6
Repeated Accuracy	±0.05mm

Component details

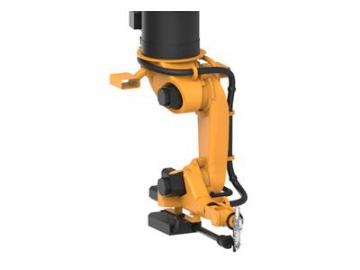

Robotic arms from Kuka
Equipped with a Robotic arm from the German company Kuka, the robotic laser cutting system is capable of producing various complicated 3D patterns in an easy, flexible manner.

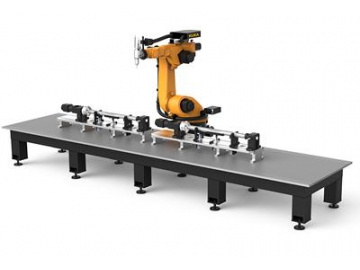

Operation table

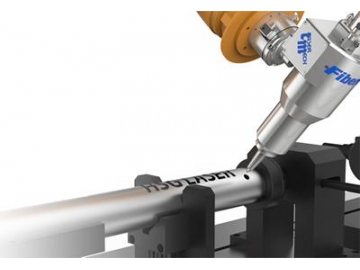

The robot arm's movement is not limited due to its laser fiber, which features an excellent flexibility and long-distance transmission ability.
