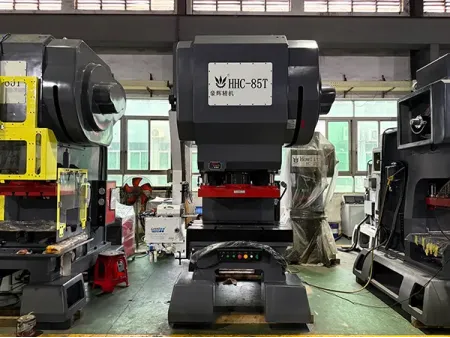

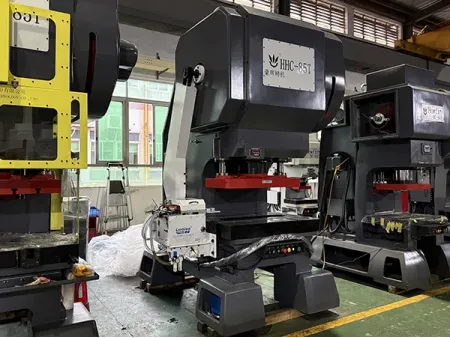

This precision C-frame press features a stroke range of 30-50 mm, speeds of 200-600 strokes per minute, and a shut height of 305-365 mm. Powered by an 18.5 kW main motor, it is designed for precision metal stamping applications such as rotor and stator cores, terminals, lead frames, hardware components, and can lids. It can be integrated with a feeder, straightener, decoiler, and scrap chopper to form a complete metal stamping line.

• The high-strength cast iron frame is fully stress-relieved to ensure dimensional stability and consistent accuracy, ideal for continuous stamping production.
• Additional side guide posts are incorporated into the traditional slide structure to improve anti-eccentric loading capability, reduce unilateral wear, and support large dies and long progressive operations.
• Equipped with a hydraulic die locking system and height indicator for convenient die adjustment and secure setup.
• The human–machine interface offers digital parameter control and real-time fault monitoring for simple and efficient operation.
• Features an electric die height adjustment mechanism with a height indicator for precise and user-friendly setup.
