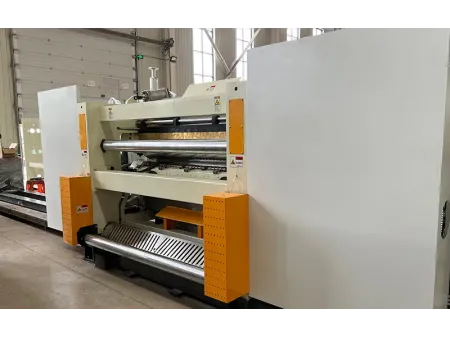

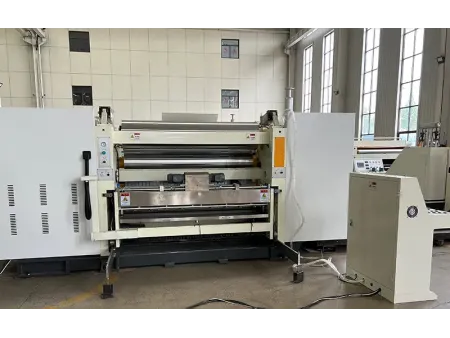

Single Facer Machine, Cassette Type
Request a Quote
Individual Machines for Corrugated Board Manufacturing
Corrugating machine for high-precision flute forming with a quick-change cassette system
The cassette-type single facer machine forms corrugated fluting by pressing the corrugated medium into shape and laminating it with a liner to produce single-face corrugated board. The machine uses a negative-pressure design to ensure uniform flute formation and precise gluing. Its stable airbag pressure control system prevents flute damage, while the electric glue control system, touch-screen interface, automatic temperature-humidity regulation, and quick-change cassette system significantly enhance production efficiency and product quality.
Features
- Enables quick cassette change within 15 minutes, greatly reducing production downtime.
- Negative-pressure design ensures consistent pressure and flute-to-liner bonding.
- Equipped with a stable airbag pressure control system to prevent flute collapse caused by localized pressure.
- Glue application uses an electric adjustment system that can operate independently, preventing glue drying and simplifying cleaning.
- Integrated air-conditioning and mist-spray system maintains stable temperature and humidity of the medium paper, preventing warping and cracking.
- Touch-screen control system with a user-friendly interface for easy operation and monitoring.
- Corrugating rolls made of 48CrMo alloy steel with hard chrome plating for durability and precision.
- Bearings of the upper and lower corrugating rolls and pressure roll use high-temperature grease to extend service life and ensure smooth, low-noise operation.
Technical Specifications
| Working width, mm | 1400-2500 |
| Operating direction | Left or right (subject to customer workshop layout) |
| Max. mechanical speed, m/min | 100-200 |
| Operating temperature, ℃ | 160-200 |
| Working air pressure, MPa | 0.4-0.9 |
| Steam pressure, MPa | 0.8-1.3 |
| Compatible flute types | UV or UVV |
