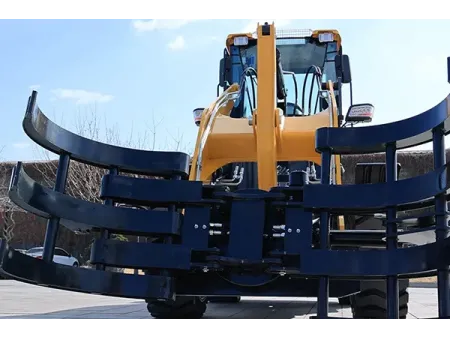

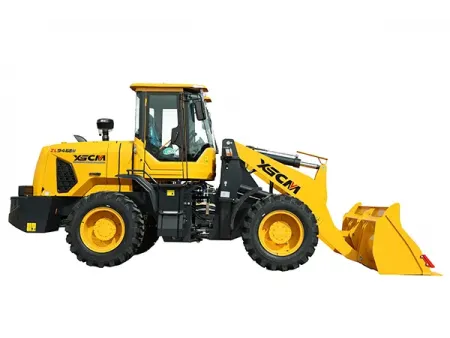

946BM Wheel Loader
Request a Quote
Front end loader with diesel engine for heavy-duty material handling operations
- Rated load
2400kg - Rated bucket capacity
1.2m³ - Operating weight
5840kg - Dump height
3600mm
Specifications
| Model | ZL946 |
| Rated load | 2400kg |
| Rated bucket capacity | 1.2m³ |
| Operating weight | 5840kg |
| Dump height | 3600mm |
| Min. turning radius | 3380mm |
| Power | 85~90kW |
| Dimensions (L×W×H) | 6730×2225×2885mm |
Features
- Designed with a rated load capacity of 2,400 kg, the 946BM handles heavy material efficiently, reducing cycle times and increasing hourly productivity, ideal for demanding heavy-load applications.
- Integrated cast-steel axle housing, made from ductile iron using one-piece casting, ensures high structural strength, impact resistance, and excellent torsional rigidity.
- Wheel reduction function enhances output torque, providing superior traction on steep slopes and under heavy loads.
- Dry-type disc brake system offers high braking efficiency, quick response, and easy maintenance.
- Reinforced main reducer features high-strength alloy steel gears treated with carburizing and quenching for extended service life.
- Optimized sealing structure, with protective dust rings and oil seals at key points, prevents dust and water intrusion, extending the lifespan of critical components.
Detail Highlights
- Cabin
- Driving axle and tires
Applications
