Multifunction Laser Welding Machine, MFW200/ MFW400 Metal Laser Welder
Application

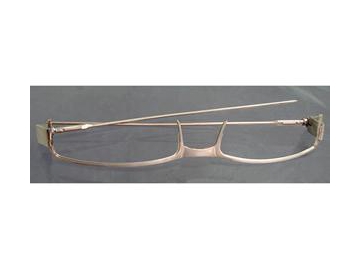

The alloy metal laser welder is commonly applied for the welding of molded steel, stainless steel, aluminum, copper, and alloy products through manual or semi-automatic operation. The welder is used in the production of smart phones, electronics components, glasses, and precision machinery.
| Model | | |
| Max. laser power | 200W | 400W |
| Laser wavelength | 1064nm | 1064nm |
| Max. energy per pulse | 90J | 110J |
| Laser welding depth | 0.1-0.8mm | 0.1-1.2mm |
| Pulse width | 0.2-20ms | 0.2-20ms |
| Continuous welding frequency | 0.5-20HZ | 0.3-100HZ |
| Range of adjustable facula size | 0.2-2mm | 0.2-2mm |
| Power consumption | ≤7KW | ≤11KW |
| Electrical connection | 220V±10%/50HZ/40A | 380V±10%/50HZ/40A |
| Standard worktable | 200mm*200mm | 500mm*500mm |
| Repetition accuracy | ±0.02mm | ±0.02mm |
| Aiming system | Red light indicator & microscope（CCD optional） | Red light indicator & microscope （CCD optional） |
| Control system | PC (CNC2000) | PC (CNC2000) |
| Worktable max. loading | 150kg | 150kg |
Feature
● The alloy metal laser welder is extremely user-friendly allowing for the adjustment of focus through the manual controls and electrical control unit.
● The welding position is located through a two-step process.
First, the rough position is aimed at with a red laser pointer.
Second, the position is confirmed using a high magnification observation microscope.
● The electric mobile worktable can be outfitted with an electrically controlled automatic welding function to realize high-speed welding.
● The laser welder is only about 3 square meters on the floor, allowing for space saving operation.

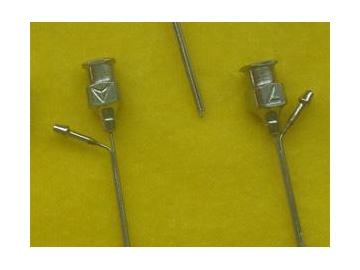

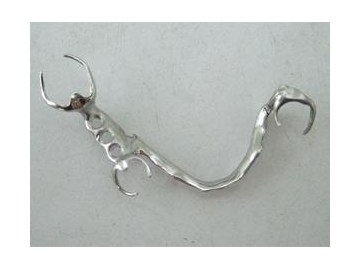

The laser welder can be used to weld the following metal parts:
● Mold steel laser welding
● Stainless steel laser welding
● Alloy steel laser welding
● Copper laser welding
● Aluminum laser welding

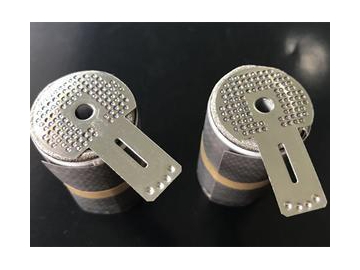

● Mobile phone battery laser welding
● Small electronic components laser welding
● Precision watch laser welding
