Hypoxic Generator
High-altitude training, or hypoxic training, is a regimen designed to enhance athletic performance, physical fitness, and high-altitude adaptation by simulating low-oxygen conditions, typically up to 6,500 meters above sea level, using a hypoxic generator. This allows athletes, mountaineers, and others to train in a plateau-like environment anywhere, promoting physiological adaptation to hypoxia. By engaging the Autonomic Nervous System (ANS), hypoxic training improves respiration and blood circulation, stimulates red blood cell production, and enhances oxygen transport, thereby boosting athletic performance and work capacity. Widely applied in sports training, aerospace, and medical fields, it helps individuals adapt to high altitudes and mobilizes the body’s potential through gradual physiological adjustments.
| Model | |
| Hypoxic Flow | 100LPM |
| Oxygen Purity | 93% (±3%) |
| Simulated Altitude | 0-6500M (0-21330ft) |
| Optional Function | Pulse oximeter; monitor system |
| Hypoxic Purity | 9%-20.9% |
| Power Consumption | ≤710W |
| Input Frequency | 50Hz; 60 Hz |
| Input Voltage | AC230V±10%; AC110V±10% |
| Application | Suitable for using at home, GYM or sports training center; |
| Model | |
| Hypoxic Flow | 100LPM |
| Oxygen Purity | 93% (±3%) |
| Simulated Altitude | 0-6500M (0-21330ft) |
| Optional Function | Pulse oximeter; monitor system |
| Hypoxic Purity | 9%-20.9% |
| Power Consumption | ≤710W |
| Input Frequency | 50Hz; 60 Hz |
| Input Voltage | AC230V±10%; AC110V±10% |
| Application | Suitable for using at home, GYM or sports training center; |
| Model | | |||
| Hypoxic Flow | 100LPM | 200LPM | 400LPM | 600LPM |
| Hypoxic Concentration | 9%-20.9% | 9%-20.9% | 9%-20.9% | 9%-20.9% |
| Outlet Pressure | 6-10Psi | 6-10Psi | 6-10Psi | 6-10Psi |
| Oxygen Concentration | 93%(±3%) | 93%(±3%) | 93%(±3%) | 93%(±3%) |
| Simulated Altitude | 0-6500m(0-21330ft) | 0-6500m(0-21330ft) | 0-6500m(0-21330ft) | 0-6500m(0-21330ft) |
| Sound Level | ≤50dB | ≤55dB | ≤58dB | ≤60dB |
| Power Consumption | ≤550W | ≤1100W | ≤2200W | ≤3300W |
| Alarms | Power failure alarm, high/low pressure alarm | Power failure alarm, high/low pressure alarm | Power failure alarm, high/low pressure alarm | Power failure alarm, high/low pressure alarm |
| Net Weight | 27kg | 95kg | 160kg | 245kg |
| Dimension | 365*375*600mm | 600*400*1380mm | 760*540*1380mm | 760*540*1960mm |
| Optional | 1. Pulse oximeter 2. Monitor system | 1. Pulse oximeter 2. Monitor system | 1. Pulse oximeter 2. Monitor system | 1. Pulse oximeter 2. Monitor system |
Features
- Hypoxic purity 9%-20.9% to simulate different elevation heights
- Continuous operation 24/7

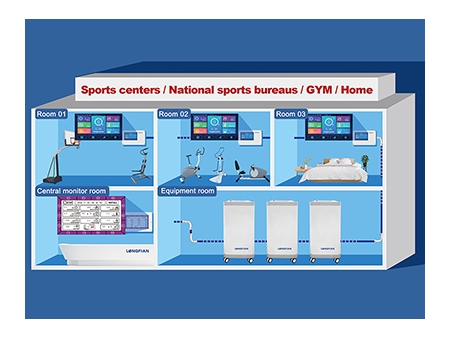

- The hypoxic training system consists of hypoxic generator, oxygen controller and LCD monitor, which is widely used in sports centers, national sports bureaus and gyms to improve athletes' physical performance.
- It can simulate different altitudes from 0-5000 meters, achieve hypoxic purity from 9% to 20%.Each room is also equipped with LCD monitor to show the hypoxic purity, temperature, humidity, altitude and CO2 content.
- The central monitor can collect all data from individual LCD monitor in each room, thereby monitoring the changes in SpO2, blood pressure and pulse of each athlete during simulated altitude training.
- Equipped with wrist or finger-clip oximeter to monitor athletes SpO2, pulse at any time and upload the data to the central monitor.

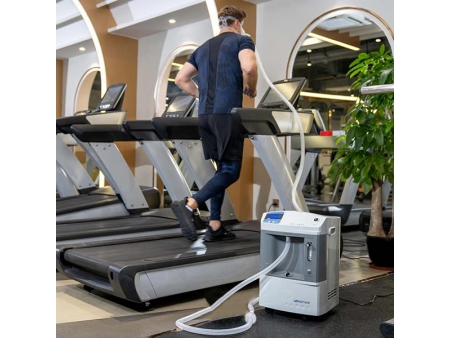

- For sport center/gym/home: improve athletes performance
- For mountaineers: adopt to high altitude environment, relieve altitude sickness
- For military: survival training for high altitude environment
- For health care and medical: adjuvant therapy for diabetes, asthma, lung illnesses (For example, post-cure treatment of Covid-19 patient), heart and vascular disease and other injuries.
