Deep Bed Sand Filter, CB-H07400 Manufacturer

Deep Bed Sand Filter, CB-H07400

Request a Quote

View All: http://dxd-poolpump.com/1-3-6-deep-bed-sand-filter.html

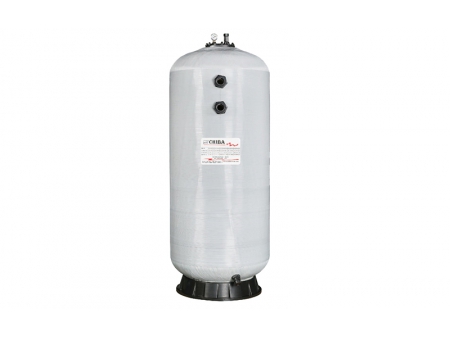

The tank of deep bed sand filters is made using fiber glass reinforced plastics, making it corrosion resistant, abrasion resistant, deforming-proof, etc. The tank height can be customized upon request. The unique water distribution system allows for a stable and even water flow, maximizing the efficiency of the drain system. Featuring easy installation and maintenance, the outlet turbidity is less than 2FTU.

With proven product quality and performance, we are confident to offer:

Pool equipment wholesale for distributors
Everything needed from pool and Spa equipment to pool accessories for pool & Spa contractor
OEM service for branded suppliers and manufacturers of pool equipment and supplies
Manufacturing service of pool equipment and supplies for the factories with limited production capacity and product variations.

Working Conditions

Maximum working pressure: 2.5kg/cm² (35psi)
(working pressure of 4kg/cm² is available as per request)
Maximum temperature: 45°C

Technical data

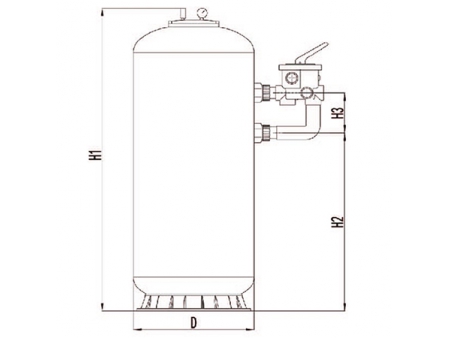

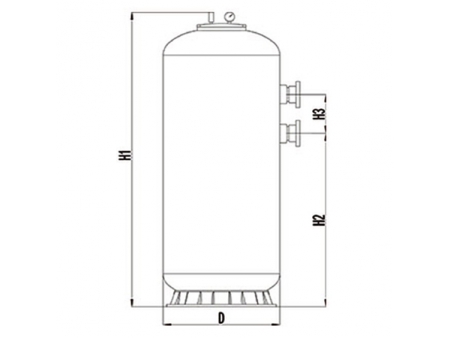

Model	Tank diameter		Tank height		Flow		Filter area		Connections		Required sand	Package
Model	mm	inch	mm	inch	m³/h	GPM	m²	sq.ft	mm	inch	kg	mm
CB-H07400	400	21.7	900	35.4	8	35	0.13	1.3	50	1.5"	95	500×500×1000
CB-H08600	600	23.6	1300	51.2	14	62	0.22	2.2	50	1.5"	315	700×700×1400
CB-H09700	700	27.6	1600	63.0	19	84	0.35	3.4	50	1.5"	450	800×800×1750
CB-H11800	800	31.5	1800	70.9	24	106	0.5	4.9	63	2"	620	900×900×1900
CB-H12900	900	35.4	2100	82.7	30	132	0.64	6.3	63	2"	850	1000×1000×2250
CB-H131050	1050	41.3	2100	82.7	38	167	0.88	8.6	63	2"	1450	1150×1150×2250
CB-H151200	1200	47.2	2100	82.7	42	185	1.13	11.1	63	2"	2150	1300×1300×2250
CB-H161400	1400	55.1	2100	82.7	56	246	1.25	12.3	90	3"	2650	1500×1500×2250
