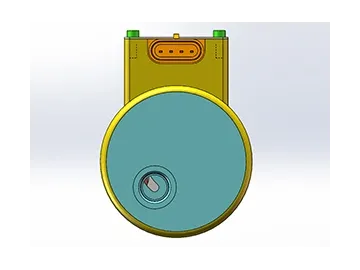

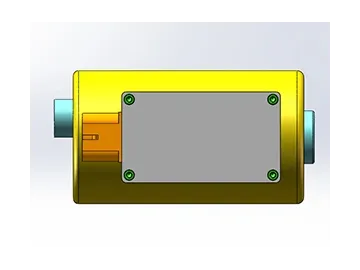

Methanol Pump
Brushless methanol fuel pumps for efficient and reliable transfer of methanol in methanol fuel vehicles, alternative-fuel and hybrid power systems
- Pressure: 10 BAR
- Mounting: Clamp mounting
- Material: Stainless steel
Saiensi specializes in the research, development, and manufacturing of core components for fuel and new energy power systems. The methanol pump is an independently developed product, supported by proprietary brushless motor technology and extensive experience in fuel pump design and production. Both in terms of market development and technical innovation, Saiensi maintains a leading position in the methanol pump industry.
| Dimensions | 172 × 120 × 88 mm |
| Weight | 3.623 kg |
| Voltage | DC 24V |
| Rated Current | 5A |
| Power | 120W |
| Locked-rotor Current | 15A |
| Rated Torque | 1.2 N·m |
| Rated Speed | 1500 r/min |
| Locked-rotor Torque | 3.13 N·m |
| Working Medium | M100 Methanol |
| Operating Temperature | -45°C to 80°C |
| Flow Rate | ≥500 L/h at 0.5 MPa |
The methanol pump functions as a power unit that delivers methanol to the engine at a specified flow rate and pressure.
- 1. Controller
- 2 Housing
- 3. O-ring
- 4. Outlet cover
- 5. Positioning plate
- 6. Bearing
- 7. Stator coil
- 8. O-ring
- 9. Gear pump
- 10. Oil seal
- 11. Motor housing
- 12. Motor shaft
- 13. Rotor
- The methanol vehicle market continues to expand due to the unique advantages and environmental benefits of methanol fuel. As a core component, methanol pumps are in growing demand with broad market prospects.
- The integrated methanol pump is developed in-house, featuring proprietary brushless motor technology that fills a domestic technical gap and demonstrates efficient performance.
- The company holds full intellectual property rights for the methanol pump series and maintains a competitive edge in both technology and market deployment.
- Stable supply chains for all core components ensure consistent quality control and cost advantages.
What are the durability advantages of methanol pumps used in methanol-fueled vehicles?
The methanol pump serves as a power unit delivering methanol to the engine under stable flow and pressure. It consists of a centrifugal volumetric pump, motor, and controller. Methanol has strong electrolytic properties when energized, which can accelerate wear on components such as carbon brushes and commutators. By adopting a brushless motor design, the pump minimizes these effects, enhancing durability and supporting energy efficiency and environmental protection in methanol-fueled vehicles.
