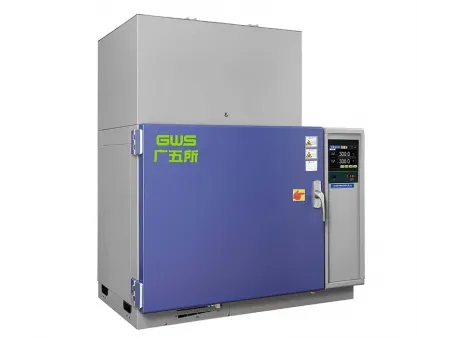

SPH Series Temperature Test Chamber with Pressure Relief Vent

Request a Quote

Website: http://testchamber-en.com/1-3-temperature-test-chamber-with-pressure-relief-vent.html

Explosion-proof test chamber for testing batteries and other flammable materials

High-temperature testing sometimes involves materials that can generate sudden pressure increases. To address these risks, this model of temperature test chamber includes a pressure relief vent integrated into the top of the chamber. If abnormal conditions occur, the vent opens automatically to release excess pressure and protect operators. This type of testing equipment is ideal for testing batteries and other items where venting capability is important; it also helps reduce the chance of accidents and equipment damage during testing processes.

Standard Configuration

2 sets of specimen racks

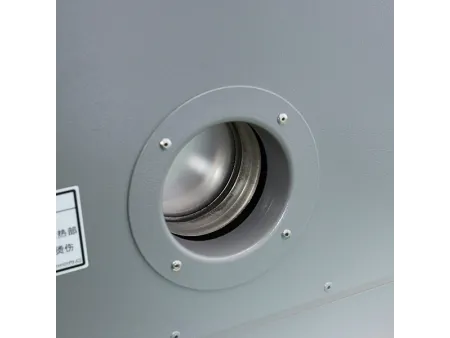

1 Cable port (Ø50 mm): with a white hard rubber plug and cover for PH models. Supplied with only a cover for PHH models
1 vent port
1 terminal block for controlling specimen power supply

Features

A built-in pressure relief vent positioned on top of the chamber to safely vent excess pressure
Automatic activation when internal pressure exceeds preset thresholds
Rapid depressurization to protect operators, prevent damage, and maintain a safer testing environment

Technical Parameters

Model		SPH				SPHH
		101	201	301	401	101	201	301	401
Chamber volume (L)		91	216	512	1000	91	216	512	1000
Temperature range		(Ambient temperature 20)℃～ 200℃				(Ambient temperature 20)℃～ 300℃
Temperature fluctuation	≤100℃	0.4℃		0.4℃		0.4℃		0.4℃
	≤200℃			0.8℃				0.8℃
	≤300℃	——				0.8℃		1.2℃
Temperature deviation	≤100℃	±1.5℃			±2.0℃	±1.5℃		±1.5℃	±2.0℃
	≤200℃	±2.0℃				±2.0℃		±2.0℃
	≤300℃	——				±3.0℃		±4.0℃
Temperature rise rate		≤60min		≤75min		≤75min		≤85min
Internal dimensions (mm)	W	450	600	800	1000	450	600	800	1000
	H	450	600	800	1000	450	600	800	1000
	D	450	600	800	1000	450	600	800	1000
External dimensions (without protrusion) (mm)	W	1040	1190	1500	1730	1040	1190	1500	1730
	H	1260	1370	1715	1800	1260	1370	1715	1800
	D	635	785	1065	1775	635	785	1065	1775
Power supply		220V (single phase protective grounding wire)		380V (three phase four wire protective grounding wire)		220V (single phase protective grounding wire)		380V (three phase four wire protective grounding wire)

Performance measured at 25 °C ambient temperature, with the chamber empty and no air exchange during operation.
