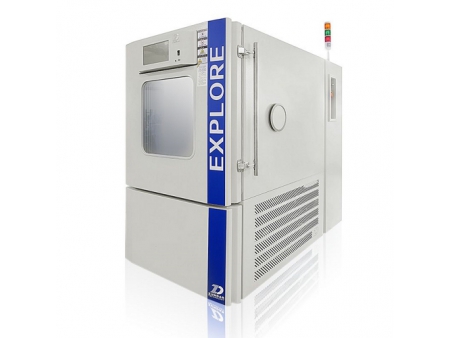

Application of Benchtop Temperature and Humidity Test Chamber The benchtop temperature and humidity test chamber is appropriate to conduct various temperature and humidity tests on electronics, components and so forth.
Technical Parameters of Benchtop Temperature and Humidity Test Chamber
Model
Temperature/Humidity range
Internal size (W×H×D)mm
ST(H)-221
-20 to 150℃/30 to 95%RH(H)
300 ×300×250
ST(H)-241
-40 to 150℃/30 to 95%RH(H)
ST(H)-261
-60 to 150℃/30 to 95%RH(H)
ST(H)-621
-20 to 150℃/30 to 95%RH(H)
400×400×400
Standards
GB/T5170.2-2008
Inspection Methods for Environmental Testing Equipment for Electric and Electronic Products - Temperature Testing Equipment
GB/T5170.5-2008
Inspection Methods for Environmental Testing Equipment for Electric and Electronic Products - Damp Heat Testing Equipment
GB/T2423.1-2008(IEC68-2-1)
Environmental Testing - Part 2: Test Methods - Tests A: Cold
GB/T2423.2-2008(IEC68-2-2)
Environmental Testing - Part 2: Test Methods - Tests B: Dry Heat
GB/T2423.3-2006(IEC68-2-3)
Environmental Testing for Electric and Electronic Products - Part 2: Testing Method Test Cab: Damp Heat, Steady State
GB/T2423.4-2006(IEC68-2-30)
Environmental Testing for Electric and Electronic Products - Part 2: Test Method - Test Db: Damp Heat, Cyclic
GJB150.3A-2009(MIL-STD-810F-2000)
Laboratory Environmental Test Methods for Military Materiel - Part 3: High Temperature Test
GJB150.9A-2009(MIL-STD-810F-2000)
Laboratory Environmental Test Methods for Military Materiel - Part 9: Damp Heat Test
Bench-top temperature humidity test chamber adopts air-conditioning chamber and multi-channel air flow circulating air supply (our patented technology of constant temperature and humidity chamber duct design). The circulating air supply ensures uniform temperature of each testing area in the test chamber and high test accuracy. It also ensures that the temperature and humidity fluctuation in the test chamber is within the range of 1 ℃. Wind speed is ≤ 1.7M / s, which is in line with the national test chamber standard (if necessary, wind speed can be customized to reach ≤ 0.5M / s). The circulating air supply effectively prevents moisture condensation and reduces operating noise of the test chamber.

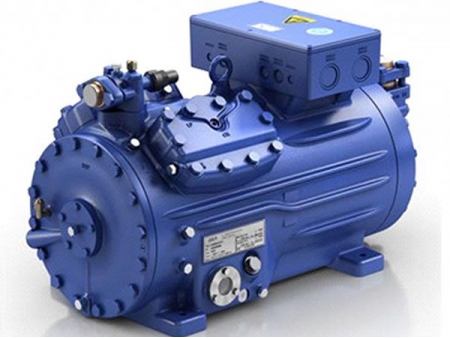

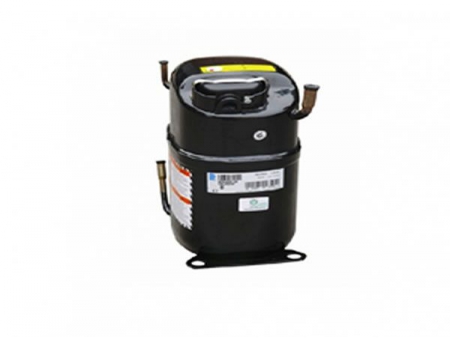

Oil separator and oil returning and shunting device: The oil contained in the high-pressure steam discharged by refrigeration compressor is separated to ensure safe and efficient operation of the refrigeration system. Oil returning and shunting device (Simplewell’s patented technology) is mainly used to ensure the long-term operation of compressor or operation in high temperature. It prevents compressor failure or shortening of compressor service life due to lack of oil.

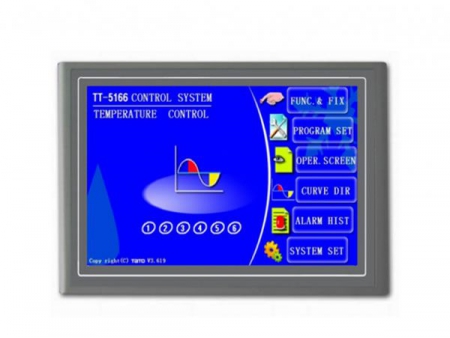

Simplewell controller

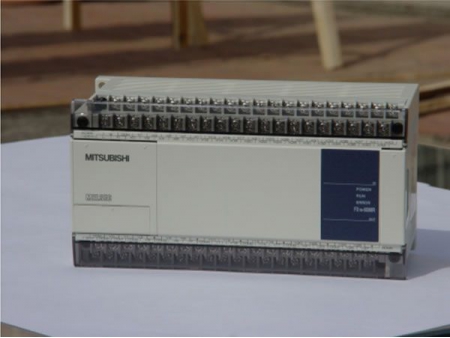

Mitsubishi PLC

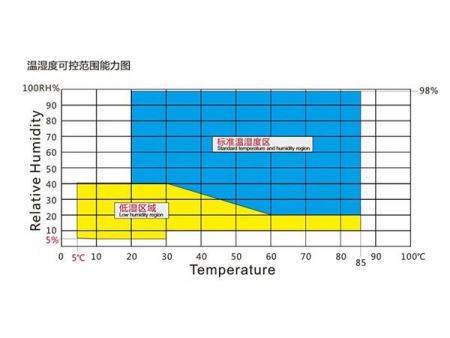

Temperature and humidity adjustment range
Optional Configurations

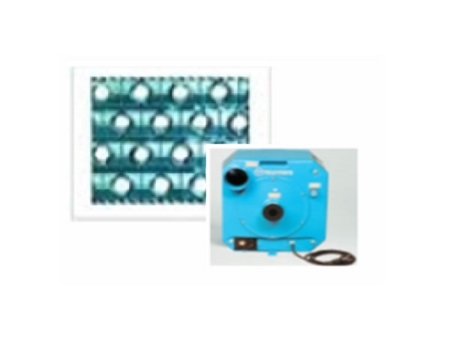

1. Rotary dehumidifier/ polymeric membrane, with a lowest temperature/ humidity content of 5℃/5 %RH.

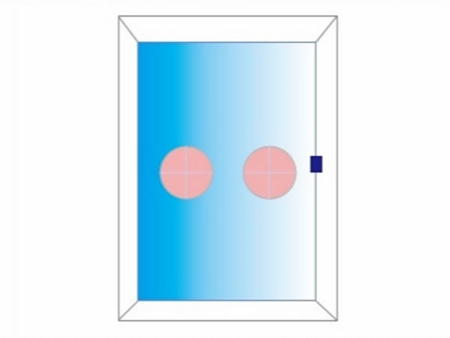

2. Built-in tempered glass door, easy to move

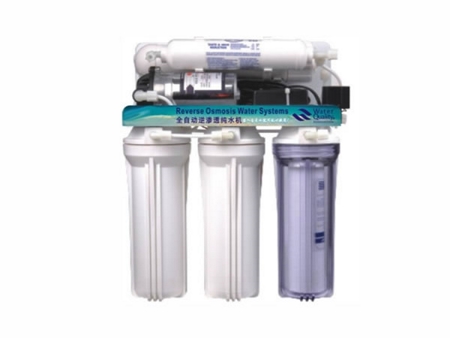

3. Water purification system, with automatic replenishment function

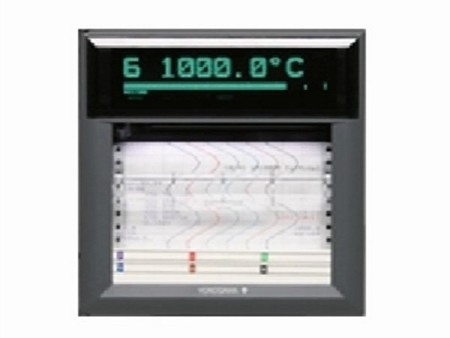

4. Recorder, save and print testing data

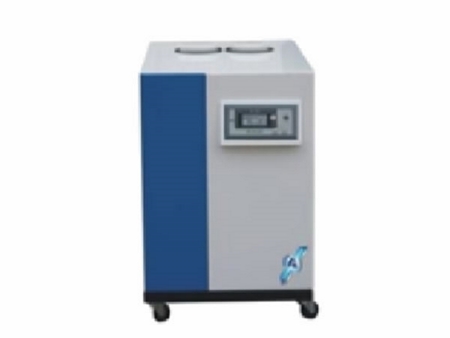

5. Ultrasonic humidifier/ high-pressure spray humidifier, providing continuous high humidity under extreme temperature

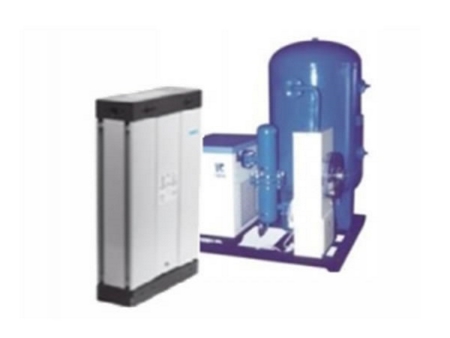

6. Dry air blow system, anti-condensation

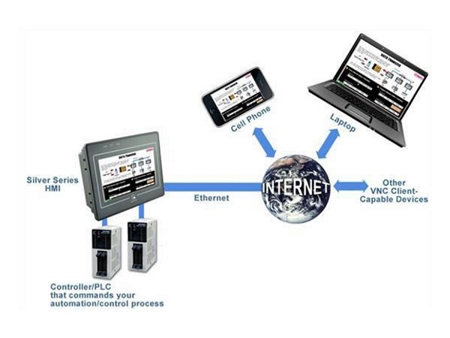

7. Remote monitoring function, cellphone and computer supportive
