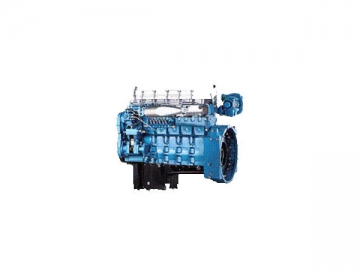

SC9DF
Request a Quote
View All: http://sdeciepower.com
| Model | Unit | EURO III, Euro III/Euro IV/Euro V | |||||
| SC9DF240 | SC9DF270 | SC9DF290 | SC9DF310 | SC9DF320 | SC9DF340 | ||
| Type | In-line, four valves, electronically controlled common rail, TCI, water cooling wet cylinder liner, front gear housing | ||||||
| Bore ×Stroke | mm | 114×144 | |||||
| Total displacement | L | 8.8 | |||||
| Rated power/rated speed | kw/r/min | 177/2200 | 199/2200 | 213/2200 | 228/2200 | 235/2200 | 245/2200 |
| Maximum torque/speed | N.m/r/min | 970/1400 | 1125/1400 | 1200/1400 | 1250/1400 | 1250/1400 | 1430/1400 |
| Min. fuel consumption | g/kw.h | ≤191 | |||||
| Noise | dB(A) | ≤98 | |||||

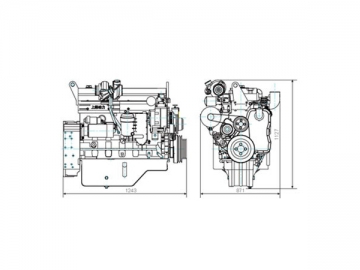

| Overall dimension | mm | Length: 1243 Width: 871 Height: 1127 | |||||
| Net weight | kg | 840 | |||||
| Power range | ps | 240~340 | |||||
