Multirip Saw

Request a Quote

View All: http://woodmachines-en.com/1-4-3-multirip-saw.html

//Woodworking Machinery

Wood sawing machine for efficient cutting of wood boards into multiple smaller pieces

Woodworking Machinery

Machine dimensions (L×W×H)1200×700×1100mm
Machine weight300kg
Motor power7.5-45kW
Rated power380V (adjustable)

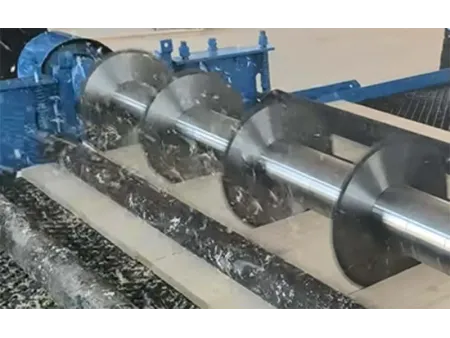

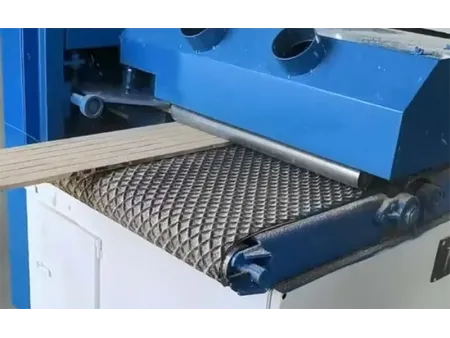

Multirip saws are designed for continuous, high-speed cutting of wood boards into multiple strips during a single feeding cycle. These wood sawing machines significantly improve production efficiency by reducing both processing time and energy consumption per unit. It is well-suited for operations that require fast, precise, and repeatable sawing, especially in mass production environments. Adjustable cutting widths allow flexibility for various board sizes and material specifications.

Advantages

The cutting width is adjustable, allowing operators to adapt to different board dimensions and production needs.
It performs a full-width cut in a single pass, increasing throughput and minimizing handling time, making it efficient for batch processing and high-volume manufacturing.

Applications

Suitable for cutting full-size wood boards into multiple narrow strips or sections in a single operation. It is ideal for applications that require uniform sizing of boards for further processing in furniture and panel production lines.

Specifications

Mode	300mm Type	1300mm Type
Machine dimensions (L×W×H)	1200×700×1100mm	2100×2000×1150mm
Machine weight	300kg	800kg
Motor power	7.5-45kW	22kW or 30kW
Spindle speed	2800r/min
Feeding speed	9m/min	Frequency control
Rated power	380V (adjustable)
Working size	Thickness: < 120mm Length: >240mm Width: not limited	Thickness: < 50mm Width: >1300mm Length: no limited
Work table	1 or 2 tables
