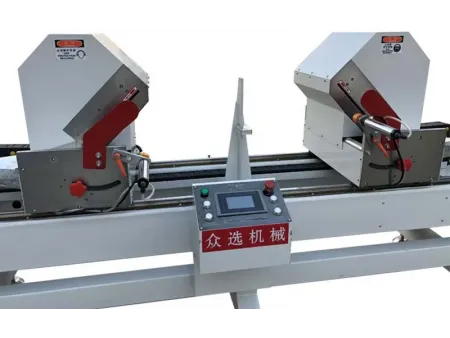

Double End Trim Saw
//Woodworking Machinery
Double blade wood sawing machine for simultaneous trimming of both ends to produce the desired length of wood board
- Working length400-2200mm
- Saw motor1.5kW×2pcs
- Machine weight900kg
- Machine dimensions3500×1200×1400mm
Double end trim saws are essential for precisely cutting wood boards to length, trimming both ends at once to produce accurately sized blanks for downstream machining or assembly. Commonly used in furniture manufacturing and structural wood component processing, these double-blade sawing machines support fixed-angle cuts at both 45° and 90°, making them perfect for sizing door stiles, rails, and frame components. The wide infeed table accommodates multiple pieces for efficient batch production.
- Equipped with precision guide rails and screw-driven feed mechanisms, it ensures stable and smooth operation.
- Delivers high dimensional accuracy for repeatable, clean cuts.
- Features a compact and logically structured design that supports easy operation and shop floor integration.

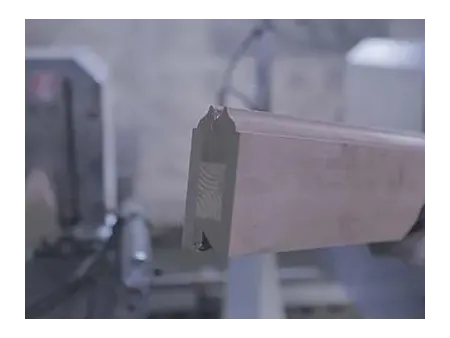

This wood sawing machine is ideal for trimming door components such as stiles and pocket frames. It performs precise edge cutting and length adjustment, including angled cuts, helping manufacturers prepare high-accuracy blanks for doors, panels, or architectural wood elements.
