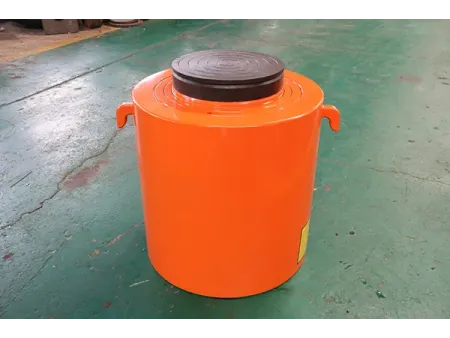

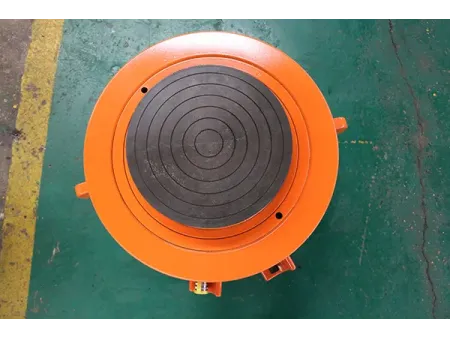

Hydraulic lifting jack for lifting, pushing, pulling and pressing operations in building and bridge construction projects

Max. Lifting Capacity 1000 T
Stroke 200 mm
Max. Working Pressure 65 MPa

Hydraulic jacks offer high output force, lightweight construction, and the ability to operate over long distances. When paired with our ultra-high-pressure hydraulic pumps, they support lifting, pushing, pulling, and pressing operations. Hydraulic jacks are widely used in transportation, railways, bridge maintenance, and shipbuilding, and in recent years have gained extensive application in foundation settlement tests and static load testing.

Technical Parameters

Model	Lifting Capacity (T)	Stroke (mm)	Outer Diameter (mm)	Inner Diameter (mm)	Rod Diameter (mm)	Height (mm)	Working Pressure (MPa)	Weight (kg)
QF-50-20	50	200	140	100	70	350	63.7	30
QF-100-20	100	200	180	140	100	360	65	55
QF-150-20	150	200	245	180	140	390	59	120
QF-200-20	200	200	273	200	140	390	63.7	145
QF-320-20	320	200	325	250	180	445	65.2	240
QF-500-20	500	200	426	320	250	500	62.5	465
QF-630-20	630	200	480	360	280	540	62	650
QF-800-20	800	200	560	400	320	590	63.7	980
QF-1000-20	100	200	610	450	360	600	63	1280

Features

High-precision sealing design: Uses internationally recognized high-pressure dual-combination seals to ensure excellent sealing performance, improved accuracy, and longer service life—at least 1.5 times longer than standard black O-rings.
Eccentric load absorption: Models of 500 tons and above are equipped with an eccentric-load absorption device to protect the piston rod when subjected to uneven forces.
Oil-port protection: All hydraulic jacks include anti-collision protection at the oil port to reduce accessory wear and improve work efficiency.
Advanced manufacturing process: The cylinder body is made from high-quality 40Cr steel, forged for strength. The inner wall undergoes deep-hole boring and rolling, enhancing surface finish and hardness while improving wear resistance and sealing performance.
Precise surface treatment: Piston rods undergo quenching and tempering to ensure wear resistance and prevent deformation under prolonged loads. Subsequent hard chrome plating increases hardness and smoothness to a level of 8, significantly reducing seal wear.
Dual-direction protective guiding system: Equipped with a PTFE copper wear-resistant guidance belt and soft wear-resistant guides to prevent friction damage to the piston rod and extend seal life.
Easy maintenance: The jack’s guide ring adopts a split design, making maintenance and disassembly easier.
Safety protection: All hydraulic jack models include safety valves to prevent damage caused by improper operation or overload.

On-Site Application

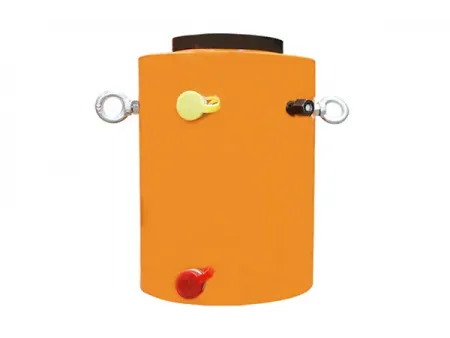

Related Hydraulic Jacking Equipment
