SY223 Series Brass 2/2-Way Solenoid Valve

Request a Quote

Website: http://solenoidvalve-en.com/1-5-brass-2-2-way-solenoid-valve-sy223-series.html

Direct Acting, Normally Closed
Port Size: 1/4"–2"
Fluid Temperature: -5°C to 80°C (-5℃ to 120℃)
Operating Pressure: 0.07–1.6MPa
Media: air, water, oil, gas

SY223 series is a pilot-operated, normally closed 2/2-way brass solenoid valve designed for small industrial spaces, with a 40% volume reduction compared to traditional valves of the same caliber. The valve’s innovative internal mechanism supports 360° omnidirectional installation, unlike traditional solenoid valves, which require directional installation. This design greatly improves the solenoid valve adaptability in complex pipelines and limited spaces.

Features

10 mm wide passageway ensures high flow capacity, smooth operation, and high flow
Optional high-temperature sealing materials (e.g., NBR, EPDM, Viton) extend the valve’s service life
No water hammer effect (hydraulic shock) or vibration interference, ensuring stable and reliable operations
The coil is fully encased in thermosetting plastic, providing excellent insulation and protection
Made of durable material and suitable with multiple media, with low maintenance requirements

Applications

Handheld device and portable machinery
Compact industrial machinery and automation systems
Compressed air control systems
Water treatment systems
Fluid control equipment

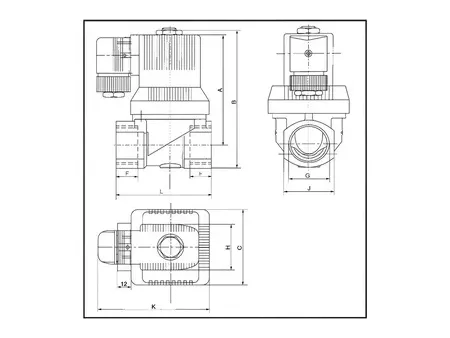

Dimensions (mm)

Model	G	C	F	L	J	A	B	H	K
SY22310-08	1/4"	45	16	52	27	82	96	40	80
SY22310-15	1/2"	45	16	52	27	82	96	40	80
SY22310-20	3/4"	45	16	63	31	82	96	40	80
SY22310-25	1"	65	18	82	41	96	117	40	90
SY22310-35	1/4"	96	20	132	58	112	145	40	132
SY22310-40	11/2"	96	20	132	58	112	145	40	132
SY22310-50	2"	111	22	160	70	125	166	40	160

Specifications

Category	2/2-way solenoid valves
Mode of operation	Direct acting	Port size	1/4"–2"
Series	SY223	Function	Normally closed (NC)
Body material	Brass	Wiring	DIN connector
Control method	Solenoid valve	Protection level	IP65
Operating pressure	0.07-1.6MPa	Mounting	Bracket required
Sealing material	NBR, EPDM, Viton	Recommended installation method	Free-mounting in any angle
Fluid temperature	-5°C to 80°C (-5℃ to 120℃)	Thread options	BSP, NPT thread
