0955 Series Brass 2/2-Way Solenoid Valve
- Pilot Operated, Normally Open
- Port Size: 1/4"–2"
- Fluid Temperature: -5°C to 80°C (120℃ optional)
- Operating Pressure: 0–1.6MPa
- Media: air, water, oil, gas
0955 Series solenoid valve is a high-performance, normally-open (NO), pilot-operated valve engineered for precise industrial fluid control applications. It adopts an innovative side-mounted reinforced diaphragm structure and modular design for easy maintenance and an extended service life exceeding 500,000 cycles. With a wide pressure range (0–16 bar) and strong media adaptability, the valve supports multi-directional installation at 360° angle. This solenoid valve is fully compliant with ISO 13845:2016 standards and available with CE and RoHS certifications, ensuring stability and quality in demanding conditions.
- Supports 360° omnidirectional installation, overcoming positional limits of traditional valves
- Provides high flow rate with fast on/off response and consistent performance across a wide pressure range
- Features a reinforced diaphragm for higher fatigue resistance and a service life exceeding 500,000 cycles
This solenoid valve is widely used in industrial environments that control air, water, light oil, and neutral chemical media for long-term continuous operations with strict requirements:
- Water treatment systems
- Chemical processing systems
- Pneumatic control systems
- Industrial automation control systems

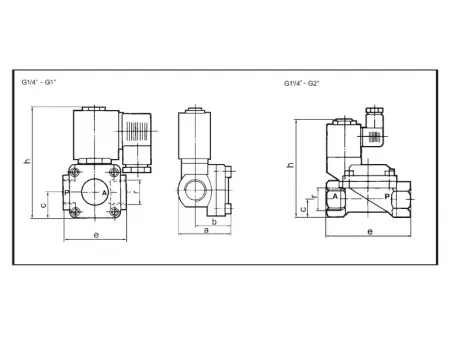

| Model | Port Size (r) | Function | Orifice | A | - | C | - | H |
| | 1/4" | Normally closed (NC) | 8mm | 45 | 31.5 | 22 | 53 | 97 |
| | 3/8" | Normally closed (NC) | 10 mm | 45 | 31.5 | 22 | 53 | 97 |
| | 1/2" | Normally closed (NC) | 12 mm | 45 | 31.5 | 22 | 53 | 97 |
| | 3/4" | Normally closed (NC) | 20 mm | 65 | 44 | 30 | 86 | 113 |
| | 1" | Normally closed (NC) | 25 mm | 65 | 44 | 30 | 86 | 113 |
| | 1"-1/4" | Normally closed (NC) | 32 mm | 95 | 47 | 31 | 132 | 136 |
| | 1"-1/2" | Normally closed (NC) | 40 mm | 95 | 47 | 31 | 132 | 136 |
| | 2" | Normally closed (NC) | 50mm | 112 | 55 | 39.5 | 160 | 155 |
| | 1/4" | Normally open (NO) | 8mm | 45 | 31.5 | 22 | 53 | 114 |
| | 3/8" | Normally open (NO) | 10 mm | 45 | 31.5 | 22 | 53 | 114 |
| | 1/2" | Normally open (NO) | 12mm | 45 | 31.5 | 22 | 53 | 114 |
| | 3/4" | Normally open (NO) | 20mm | 65 | 44 | 30 | 86 | 130 |
| | 1" | Normally open (NO) | 25mm | 65 | 44 | 30 | 86 | 130 |
| | 1"-1/4" | Normally open (NO) | 32mm | 95 | 47 | 31 | 132 | 153 |
| | 1"-1/2" | Normally open (NO) | 40 mm | 95 | 47 | 31 | 132 | 153 |
| | 2" | Normally open (NO) | 50 mm | 112 | 55 | 39.5 | 160 | 172 |
| Category | | ||
| Mode of operation | Pilot operated | Port size | 1/4"–2" |
| Series | 955 | Function | Normally open (NO) |
| Body material | Brass | Wiring | DIN connector |
| Control method | Solenoid valve | Protection level | IP65/IP67 |
| Operating pressure | 0-1.6MPa | Mounting | Bracket required |
| Sealing material | NBR, EPDM, Viton | Recommended installation method | Free-mounting in any angle |
| Fluid temperature | -5°C to 80°C (120℃ optional) | Thread options | BSP, NPT thread |
