2-WF(D)67K CNC Controlled Hydraulic Press Brake Manufacturer

2-WF(D)67K CNC Controlled Hydraulic Press Brake

Request a Quote

View All: http://hxmachinetool.com/1-5-cnc-control-bending-press-brake.html

The structure of the CNC control bending press brake is holistically processed and the press brake features outstanding bending speed with a high degree of positioning accuracy.

Nominal Pressure (KN)

2-(2000-6000)

Bench Length (mm)

2-(6000-8000)

Bench Width (mm)

220-400

Pole Distance (mm)

4600-6200

Parameters

Model
Nominal Pressure (KN)	2-2000	2-4000	2-5000	2-6000
Bench Length (mm)	2-6000	2-6000	2-6000	2-8000
Bench Width (mm)	220	320	360	400
Pole Distance (mm)	4800	4600	4800	6200
Throat Depth (mm)	400	400	400	500
Slider Stroke (mm)	250	250	300	300
Max. Opening Height (mm)	500	520	620	620
Slider Stroke Adjust Length (mm)	180	200	200	250
Oil Cylinder Diameter (mm)	Φ240	Φ350	Φ380	Φ420
Main Motor (kw)	2-11	2-30	2-37	2-45
Machine Length (mm)	2×6100	2×6200	2×6200	2×8400
Machine Width (mm)	2×2150	2×2700	2×2900	2×3300
Machine Height (mm)	2×3350	2×4100	2×4300	2×5600

Features

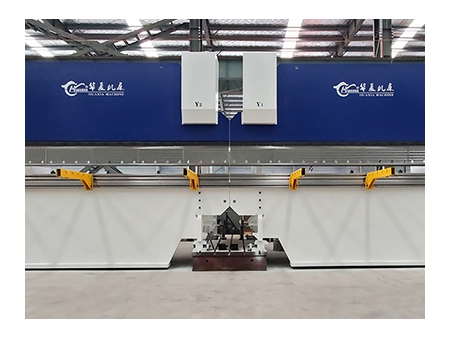

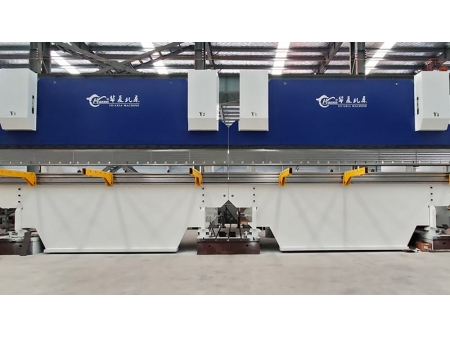

The 2-WF67K(Y) press brake adopts two kinds of the same specification press brake and features a double linkage synchronization system.
The two press brake linkage can be used to process workpieces 6m long, and both machines can work individually. This improves production efficiency.
The synchronizer is available for torsion shaft synchronization, mechanical-hydraulic synchronization, electro-hydraulic synchronization, which can be selected according to the needs of the customer.
The press brake can be outfitted with various CNC controllers to perform multi-axis controlling.
