Vertical Form Fill Seal Machine with Compact Bucket Chain Conveyor Manufacturer

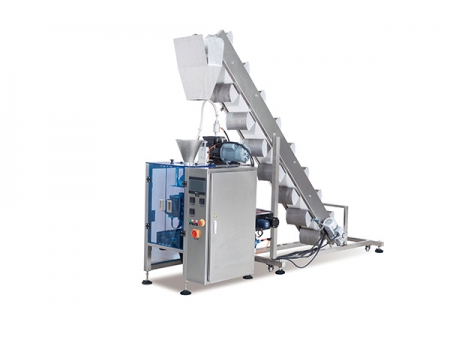

Vertical Form Fill Seal Machine with Compact Bucket Chain Conveyor

Request a Quote

View All: http://packaging-provider.com/1-6-1-bucket-chain-vffs-machine.html

Suitable for packaging wet noodles, rice and other starchy items.

Packaging machine

Manual material feeding
The bucket chain conveyor eases material feeding. A variety of materials are applicable.

Bag format: 3-side seal bag

Machine set: SK-L380DL vacuum packaging machine and compact bucket chain conveyor.

Specifications

Model	SK-L380DL	SK-L420DL	SK-L420	SK-L520	SK-L620	SK-L720	SK-L820
Bag width range	50-180mm	80-200mm	80-200mm	100-250mm	150-300 mm	180-350 mm	200-400 mm
Bag length range	80-240mm	80-300mm	80-300mm	80-350mm	100-400 mm	100-500 mm	100-600 mm
Speed	5-85bags/min	5-80bags/min	5-80bags/min	5-70bags/min	5-55 bags/min	5-55 bags/min	5-50 bags/min
Material type	PE, laminations, non-woven fabric, etc.	PE, laminations, non-woven fabric, etc.	PE, laminations, non-woven fabric, etc.	PE, laminations, non-woven fabric, etc.	PE, laminations, non-woven fabric, etc.	PE, laminations, non-woven fabric, etc.	PE, laminations, non-woven fabric, etc.
Machine Dimension	L1200 * W820 * H1350mm	L1100 * W925* H1650mm	L1450 * W1000 * H1650mm	L1430 * W1200 * H1700mm	L1780* W1300 * H1950 mm	L1800 * W1310 * H2050 mm	L1950* W1460 * H2550 mm
Machine weight	350kg	450kg	500kg	650kg	700kg	750kg	800kg

If you are interested in our vertical form fill seal machine with a compact bucket chain conveyor, please feel free to contact us for more information.
