120kW-650kW Diesel Generator Set
Request a Quote
Yuchai Engine Series
Powered by Yuchai diesel engine

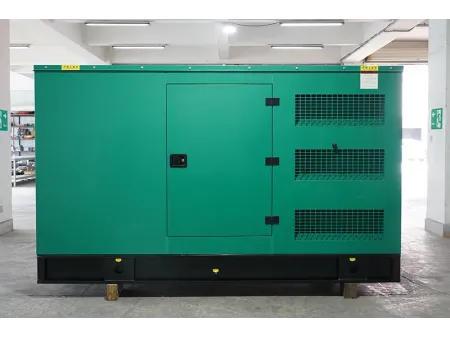

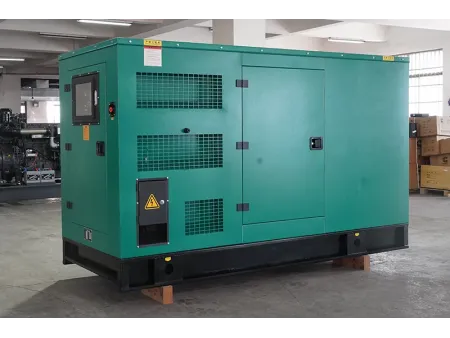

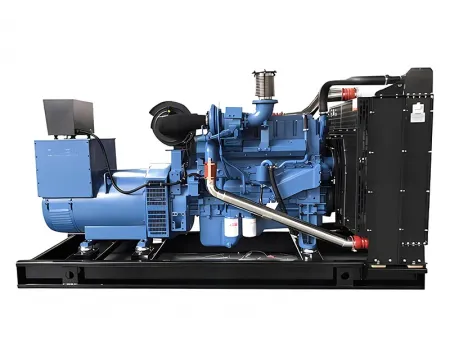

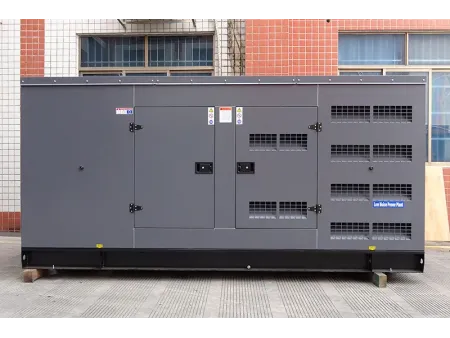

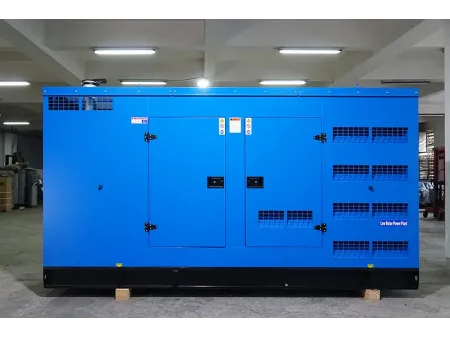

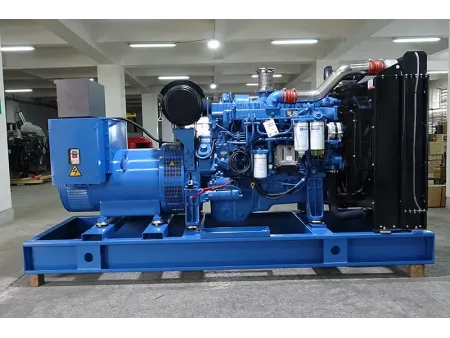

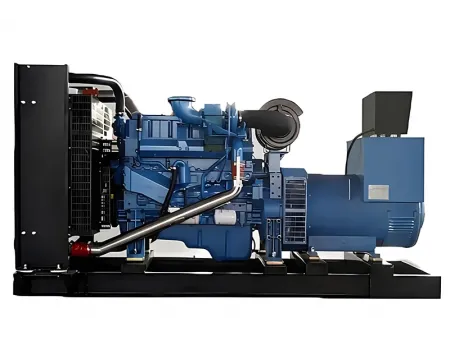

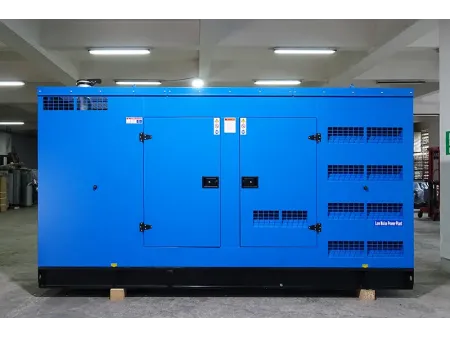

Since 1981, Yuchai has been at the forefront of six-cylinder diesel engine development, utilizing world-class equipment and production techniques. The consistent, reliable performance of Yuchai engines has earned it a reputation for quality and efficiency, leading to its designation as an energy-saving product by the state. DINGBO offers a versatile selection of Yuchai-supported diesel generator sets, including open skid, silent, trailer-mounted, and containerized types. Below are the specifications for our 120-650kW Yuchai engine series diesel generator sets.
120kW/150kVA

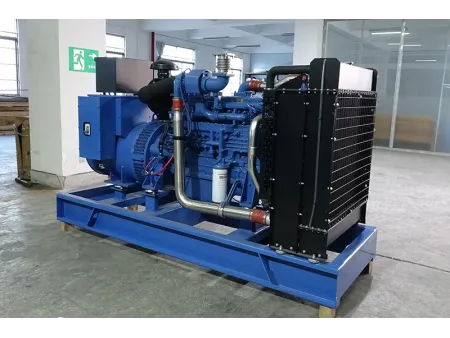

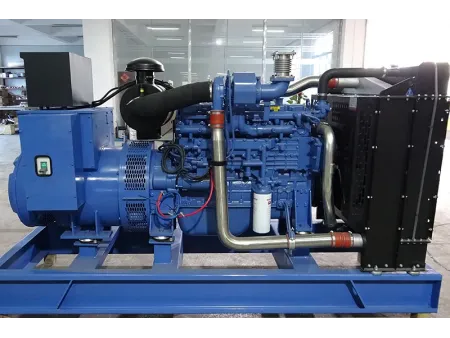

Diesel Generator Set with Yuchai Engine, DB-120GF
- Prime power: 120kW/150kVA
- Standby power: 132kW/165kVA
- Rated current: 216A
- Rated voltage: 400V/230V Customized
- Frequency: 50Hz
- Engine: Yuchai YC6B205L-D20
- Alternator: Stamford/Leroy Somer/Engga (optional)
150kW/187.5kVA
Diesel Generator Set with Yuchai Engine, DB-150GF
- Prime power: 150kW/187.5kVA
- Standby power: 165kW/206kVA
- Rated current: 270A
- Rated voltage: 400V/230V Customized
- Frequency: 50Hz
- Engine: Yuchai YC6A245L-D21
- Alternator: Stamford/Leroy Somer/Engga (optional)
160kW/200kVA
Diesel Generator Set with Yuchai Engine, DB-160GF
- Prime power: 160kW/200kVA
- Standby power: 176kW/220kVA
- Rated current: 288A
- Rated voltage: 400V/230V Customized
- Frequency: 50Hz
- Engine: Yuchai YC6A275-D30
- Alternator: Stamford/Leroy Somer/Engga (optional)
200kW/250kVA
Diesel Generator Set with Yuchai Engine, DB-200GF
- Prime power: 200kW/250kVA
- Standby power: 220kW/275kVA
- Rated current: 360A
- Rated voltage: 400V/230V Customized
- Frequency: 50Hz
- Engine: Yuchai YC6MK350L-D20
- Alternator: Stamford/Leroy Somer/Engga (optional)
250kW/312.5kVA
Diesel Generator Set with Yuchai Engine, DB-250GF
- Prime power: 250kW/312.5kVA
- Standby power: 285kW/356kVA
- Rated current: 450A
- Rated voltage: 400V/230V Customized
- Frequency: 50Hz
- Engine: Yuchai YC6MK420L-D20
- Alternator: Stamford/Leroy Somer/Engga (optional)
280kW/350kVA
Diesel Generator Set with Yuchai Engine, DB-280GF
- Prime power: 280kW/350kVA
- Standby power: 308kW/385kVA
- Rated current: 504A
- Rated voltage: 400V/230V Customized
- Frequency: 50Hz
- Engine: Yuchai YC6MJ500L-D21
- Alternator: Stamford/Leroy Somer/Engga (optional)
300kW/375kVA
Diesel Generator Set with Yuchai Engine, DB-300GF
- Prime power: 300kW/375kVA
- Standby power: 330kW/412.5kVA
- Rated current: 540A
- Rated voltage: 400V/230V Customized
- Frequency: 50Hz
- Engine: Yuchai YC6MJ500L-D21
- Alternator: Stamford/Leroy Somer/Engga (optional)
350kW/437.5kVA
Diesel Generator Set with Yuchai Engine, DB-350GF
- Prime power: 350kW/437.5kVA
- Standby power: 385kW/481kVA
- Rated current: 630A
- Rated voltage: 400V/230V Customized
- Frequency: 50Hz
- Engine: Yuchai YC6MJ600-D30
- Alternator: Stamford/Leroy Somer/Engga (optional)
400kW/500kVA
Diesel Generator Set with Yuchai Engine, DB-400GF
- Prime power: 400kW/500kVA
- Standby power: 440kW/550kVA
- Rated current: 720A
- Rated voltage: 400V/230V Customized
- Frequency: 50Hz
- Engine: Yuchai YC6K660-D30
- Alternator: Stamford/Leroy Somer/Engga (optional)
500kW/625kVA
Diesel Generator Set with Yuchai Engine, DB-500GF
- Prime power: 500kW/625kVA
- Standby power: 550kW/687.5kVA
- Rated current: 900A
- Rated voltage: 400V/230V Customized
- Frequency: 50Hz
- Engine: Yuchai YC6TD840-D31
- Alternator: Stamford/Leroy Somer/Engga (optional)
600kW/750kVA
Diesel Generator Set with Yuchai Engine, DB-600GF
- Prime power: 600kW/750kVA
- Standby power: 660kW/825kVA
- Rated current: 1080A
- Rated voltage: 400V/230V Customized
- Frequency: 50Hz
- Engine: Yuchai YC6TD1000-D30
- Alternator: Stamford/Leroy Somer/Engga (optional)
650kW/813kVA
Diesel Generator Set with Yuchai Engine, DB-650GF
- Prime power: 650kW/813kVA
- Standby power: 710kW/888kVA
- Rated current: 1170A
- Rated voltage: 400V/230V Customized
- Frequency: 50Hz
- Engine: Yuchai YC6TH1070-D31
- Alternator: Stamford/Leroy Somer/Engga (optional)
