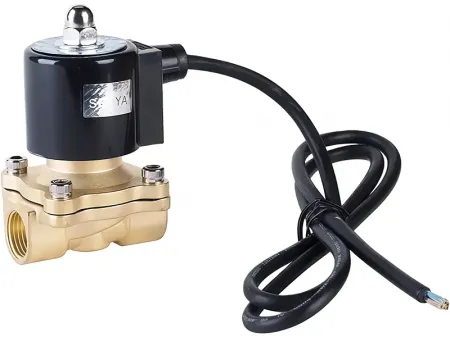

2W Series Brass 2/2-Way Solenoid Valve

Request a Quote

Website: http://solenoidvalve-en.com/1-7-brass-2-2-way-solenoid-valve-2w-series.html

Direct Acting, Normally Closed
Port Size: 1/8"–2"
Fluid Temperature: -5°C to 80°C (-5℃ to 120℃)
Operating Pressure: 0–1.0MPa
Media: air, water, oil, gas

2W series solenoid valve is designed for harsh industrial environments. It features a direct-acting structure with a working pressure range of 0-10 bar, making it suitable for various fluid control systems. It provides a zero-pressure start for quick response without requiring minimum operating pressure and ensures stable performance even in low-pressure conditions. In compliance with ISO 9001 and RoHS standards, this valve offers a wide range of customization options.

Features

Modular design with maintenance-optimized structure for easy assembly, disassembly, and reduced downtime
Optimized flow channel for high flow capacity and low pressure loss, compatible with unfiltered or viscous media
Optional intelligent power management reduces energy consumption up to 60%, which saves energy and prevents overheating
Customizable body (e.g., brass or stainless steel) and sealing materials (NBR, FKM, etc.) to meet different temperature and media conditions
Optional IP43/IP65/IP68 protection level coil and DIN standards electrical connection ensure compatibility with commonly used industrial control systems

Applications

Car wash
Laundry equipment
Air compressors
Industrial water control systems
Water pump
Water treatment systems

Some models comply with FDA standards, making them suitable for food and medical applications.

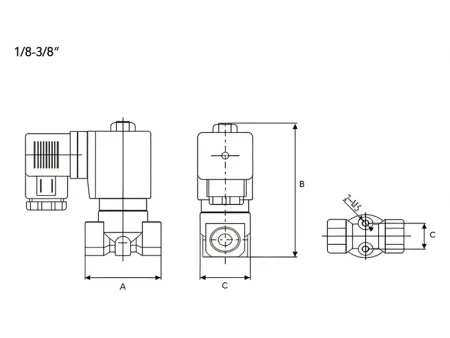

Dimensions (mm)

Port Size	A	B	C
1/8"	40.5	83.5	26.8
1/4"	40.5	83.5	26.8
3/8"	69	106	57
1/2"	69	106	57
3/4"	73	114	57
1"	73	114	57
1"-1/4"	112	150	86.5
1"-1/2"	123	160	94
2"	165	183	123
Note: Valves can be mounted in any position unless installation restrictions are specified.

Specifications

Category	2/2-way solenoid valves
Mode of operation	Direct acting	Port size	1/8"–2"
Series	2W	Function	Normally closed (NC)
Body material	Brass	Wiring	Flying leads/DIN connector/Waterproof coil
Control method	Solenoid valve	Protection level	IP43/IP67/IP68
Operating pressure	0-1.0MPa	Mounting	Bracket required
Sealing material	NBR, Viton, EPDM, Silicone	Recommended installation method	Horizontally
Fluid temperature	-5°C to 80°C (120℃ optional)	Thread options	BSP, NPT thread
