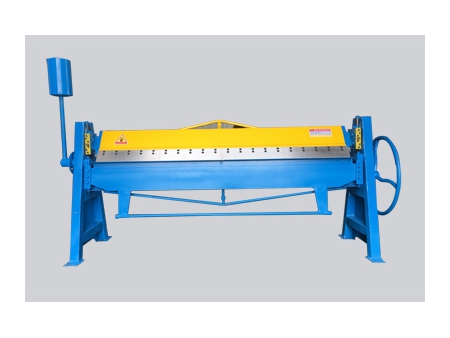

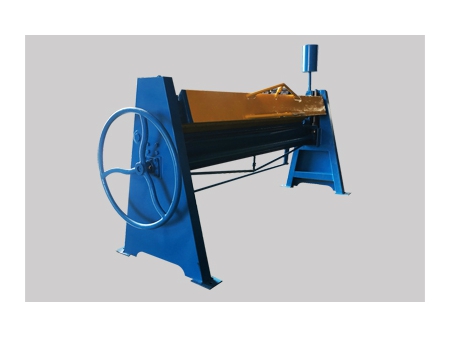

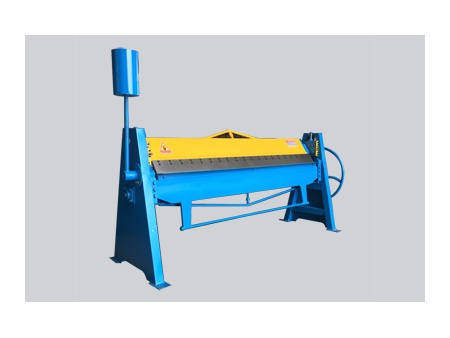

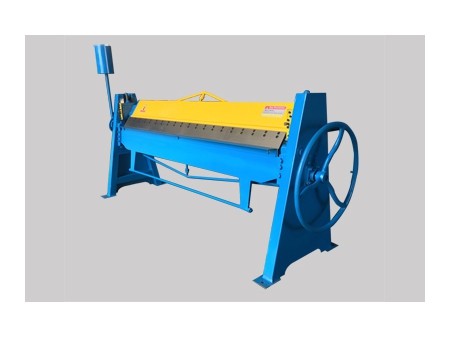

Metal Edge Bending Machine
Request a Quote
The metal edge bending machine features a simple design that allows for manual or power-driven operation. The machine can perform slotting or bending work according to the features required during the process.
Parameters| Specification | Minimum bending angle (°) | Bending length (mm) | Bending width (mm) | Weight (kg) | |
| S-2×1300 | 60 | 1300 | 2 | 420 | |
| S-1.5×1500 | 60 | 1500 | 1.5 | 450 | |
| S-1.5×2000 | 60 | 2000 | 1.5 | 510 | |
| S-1.5×2500 | 60 | 2500 | 1.5 | 680 |
- The bending and grooving angles are vertical and beautiful. It can be used to bend many shapes.
- The feeding part adopts double screw rod continuous feeding system, which greatly improves the feeding accuracy and solves the problem of inaccuracy of traditional wheel feeding.
