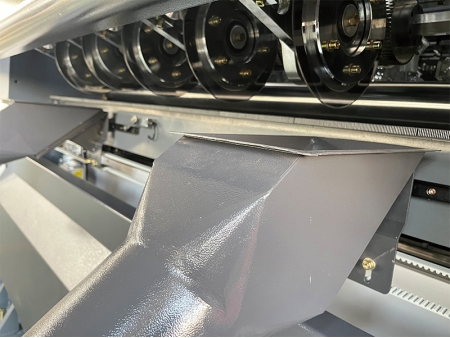

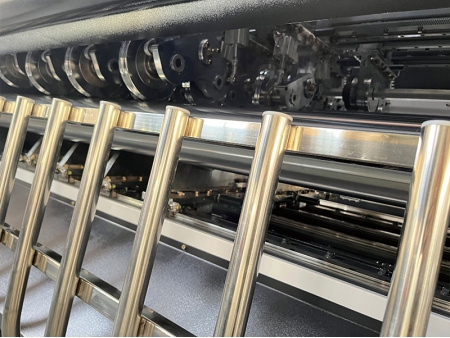

Slitter Scorer (ENC type)
Request a Quote
Features
- The CNC system is composed of a high-quality touch screen and PLC, and can be seamlessly connected to the production line.
- Precision linear guide rails ensure accurate slitting and scoring positioning.
- The system can store multiple orders and supports automatic or manual order change without stopping the machine.
- Production speed is synchronized with the board speed, and the machine offers a standard communication interface for easy integration with production management systems.
- Equipped with alloy tungsten-steel thin blades that are extremely sharp and offer a service life of more than 8 million meters, with automatic blade sharpening.
- Blade sharpening is controlled by the computer and can be performed automatically or manually. The passive sharpening unit has a compact structure and is easy to maintain.
- Provides two scoring options: convex-to-concave and convex-to-flat.
- Dual rows of scoring wheels enable a minimum scoring distance of 0 mm.
- Scoring depth is computer-controlled, producing high-quality, stable and easy-to-form crease lines.
- The synchronous belt drive ensures high precision, low noise, and long service life.
- The machine is equipped with a motorized left-right rectification system with a correction range of 200 mm.
Specifications
| Model | ||||||
| Speed | 200m/min | 250m/min | ||||
| Blade & scorer | 5&8 | 6&10 | 7&12 | |||
| Order change | 1s | |||||
| Precision | ±0.5mm | |||||
| Min. slitting width | 135mm | |||||
| Min. scoring width | 0mm | |||||
| Correction range | 200mm | |||||
| Power | 25kW | 30kW | 35kW | |||
| Machine size | 3900*1800*2450 mm | 4300*1800*2450mm | 4500*1800*2450mm | |||
