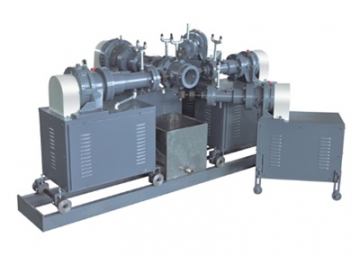

Five-Color Foxing Tape Extruder
Request a Quote
This extrusion machine is designed for making 5-color foxing tape of vulcanized shoes. It can accomplish various processes including embossing, cooling, filtering, drying and automatic cutting off. The foxing extruder is an essential machine for rubber foxing tape making.
| Model | 5XJ-Φ90 | 5XJ-Φ75 | 5XJ-Φ60 |
| Main screw diameter | Φ90 | Φ75 | Φ60 |
| Auxiliary screw diameter | Φ60 Φ45 Φ35 Φ35 | Φ50 Φ35 Φ35 Φ35 | Φ45 Φ35 Φ35 Φ35 |
| Throughput | 30-240kg/h | 22-180kg/h | 15-120kg/h |
| Max. foxing tape width | 100mm/50mm*2 | 76mm/38mm*2 | 50mm/25mm*2 |
| Power | 29KW | 19KW | 16KW |
| Dimension L*W*H | 5800*2500*1400mm | 5600*2500*1400mm | 5500*2500*1400mm |
