Scaffold Ringlock System
Whether you are a project contractor or a distributor, Coronet scaffolding systems are the reliable choice for your project or business.

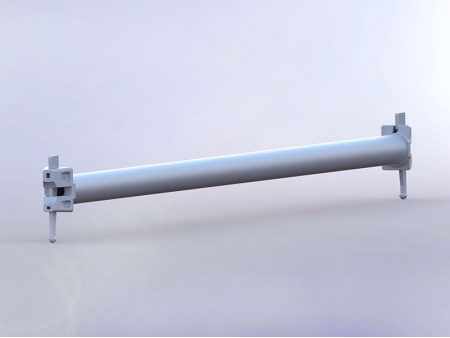

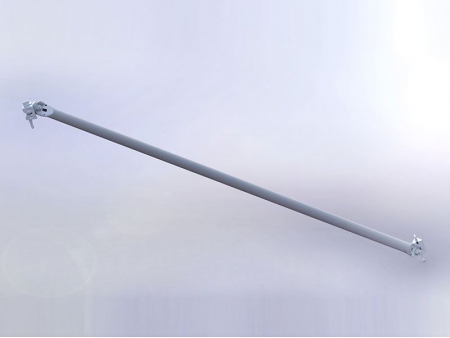

This ringlock system allows for the horizontal bar on the scaffolding to be used in either a diagonal or multi-angle combination, making it applicable to various building facades.
Scaffold ringlock systems are widely used in construction industry, maintenance, energy production, chemical processing, oil refining, aviation, shipbuilding and other industrial fields.
Coronet's ringlock systems are manufactured using high strength standard steel material and a high quality welding process. This ensures the system stability is much larger than general products.
The testing results from the American laboratory ELEMENT show that the system deviation is much lower than 10%, as required by OSHA standards on deviation.
The 3-layer ringlock system has a maximum load of 79,475 lbs. and the safety load per vertical bar is 4.965lbs (a safety factor of 4:1)

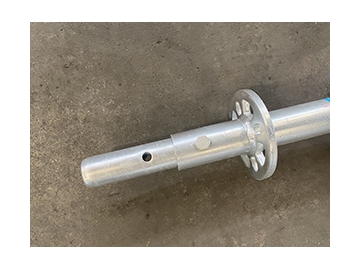

Features- This ringlock system features a flexible assembly that allows for multi-size positioning. The vertical bar matches metric horizontal bars in various specifications. Rosettes on the vertical bar are at an interval of 0.5m (19-3/8'').
- The ringlock uses a robot automatic inert-gas-shield arc welding, which ensures no leak points, a high re-melting quality and a smooth welding seam.
- The ringlock system surface has been hot dip galvanized, and the cladding has a strong corrosion resistance.
- The scaffold ringlock system is simple and convenient to assemble and disassemble.
- The high matching performance guarantees the scaffolding is applicable to different conditions.
- With multi-angle connections, the ringlock and the precision casting horizontal head are connected using a pin in order to ensure safety connection.
Our ring lock scaffolding parts fully comply with EN 12810/EN12811, ANSI/SSFI SC100-5/05, AS/NZS 1576, NCH2501, GOST 27321-2018 and GOST 24258-88 standards.
