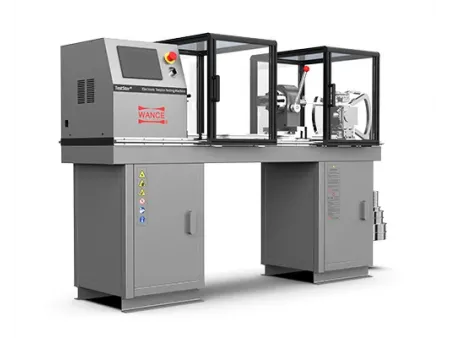

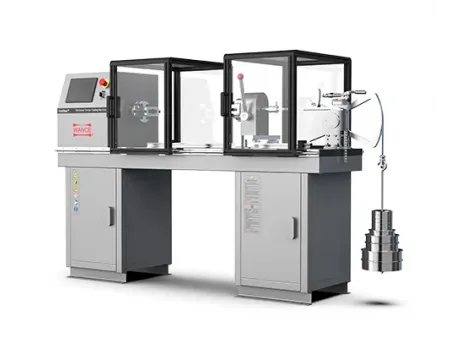

This machine is designed for torsional testing of aluminum, steel, copper, and aluminum-clad wire to evaluate their ability to withstand plastic deformation under single-direction or bidirectional twisting. It also reveals surface and internal defects of the wire during the torsion process.

Maximum torque, Nm: 200
Measured accuracy: Class 1
Torque accuracy: ±1%
Torque resolution: 1/500,000FS
Torsion speed, r/min: 60
Torsion speed accuracy: ±1.0% of setting
Specimen size, mm: ⌀1-⌀10
Dead weight mass, kg: 10-100
Dead weight mass accuracy: ≤±0.3%
Electric supply: 220V±10%, 50Hz
Power, kW: 1.3
Weight, kg: 500
