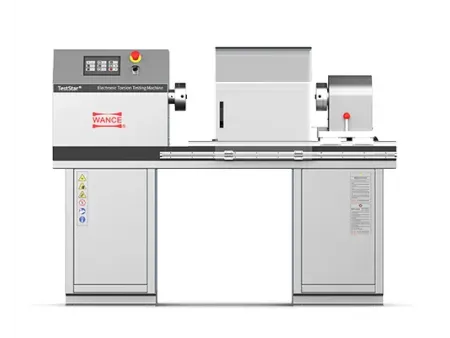

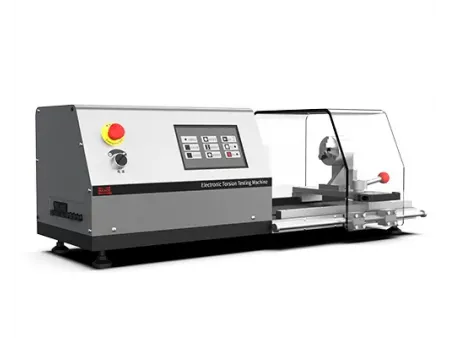

Table-Top Torsion Testing Machine

Request a Quote

Website: http://testingmachine-en.com/11-1-table-top-torsion-testing-machine.html

TST Series (50Nm-5000Nm)

The table-top torsion testing machines adopt a compact benchtop structure featuring a low-backlash precision planetary gearbox and an imported servo motor. This configuration offers quiet operation, high transmission efficiency, and a wide speed range, with maximum output speed reaching 15r/min (5400°/min), significantly reducing the duration of conventional torsion tests. In addition to standard torsional evaluation, the tester supports torsional residual strain testing, making it particularly suitable for university laboratories and teaching applications.

Function

Suitable for torsional property testing of metallic materials, non-metallic materials, and composite specimens.

Features

The load-bearing structure is machined as a single unit, ensuring high dimensional accuracy and excellent overall rigidity.
High-precision linear guides provide accurate alignment and contribute to consistent measurement accuracy across all test modes.
A high-accuracy torque sensor with carefully engineered mounting arrangement ensures excellent linearity, stability, and repeatability during torque measurement.
The mechanical design ensures high coaxial alignment, resulting in improved torque accuracy and reduced measurement error.
Equipped with a Yaskawa Σ-7 servo motor for superior motion control. Combined with a precision planetary gearbox, the drive system delivers ultra-low noise, low heat generation, and high transmission efficiency.
The torsion-angle measurement device uses a Swiss micrometer-scale indicator to achieve exceptional accuracy and responsiveness. The lightweight design improves specimen clamping efficiency, with angle resolution as fine as 0.001°, providing highly accurate and repeatable test results.

Specifications

Model	TST501	TST202		TST502	TST103	TST203	TST303	TST503
Maximum torque (Nm)	50	200		500	1000	2000	3000	5000
Torque range, Nm	1-50	2-200		5-500	10-1000	20-1000	30-1000	50-1000
Measured accuracy	Class 0.5
Torque reading accuracy	±0.5% of reading
Torque resolution, Nm	1/500,000FS
Torsion angle range, °	0-10000
Torsion angle accuracy	±0.5% of reading
Troptometer angle resolution	0.001°
Troptometer angle accuracy	±1.0% of reading
Torsion speed, °/min	0.01-10800		0.01-5400	0.01-1800		0.01-1080	6-720
Torsion speed accuracy	±1.0% of setting
Grip distance, mm	300
Gripping end diameter	⌀3- ⌀8		⌀8- ⌀18	⌀10- ⌀20		⌀8- ⌀20	⌀10- ⌀28
Motor consumption, kW	0.4		0.85	0.85		1.3	2	2
Electric supply	220VAC, 50Hz, single-phase
Dimension, mm	950x340x300		950x350x400	1600 x422 x1200		1700x550x1200	1800x500x1350	1850x660x1200
Weight, kg	60		100	500		700	750	750
